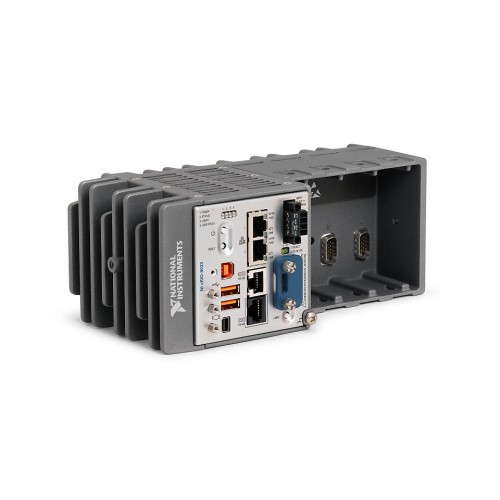

The NI cRIO-9034 is a four-slot CompactRIO controller combining a quad-core processor and reconfigurable FPGA for embedded control and monitoring.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This fanless embedded controller runs NI Linux Real-Time and provides an embedded user interface. Mini DisplayPort supports a local HMI for application development.
Verified product specifications.
| CPU | Intel Atom E3845, four cores |
|---|---|
| CPU frequency | 1.91 GHz |
| Slot count | 4 slots |
| Processor memory | 2 GB DDR3L |
| Internal storage | 16 GB |
| FPGA | Xilinx Kintex-7 7K325T |
| Operating system | NI Linux Real-Time (64-bit) |
| Operating temperature | -20 to 55 °C |
| Power input range | 9 to 30 V DC on V1 and V2 |
| Maximum power consumption | 40 W; fully populated, high-stress system with maximum module and USB loading |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Embedded control platform
Four-slot controller
LabVIEW FPGA Module is required to program the user-accessible FPGA, but not for Scan Interface mode.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides four slots.
Yes. Its Mini DisplayPort enables a local HMI for application development.
