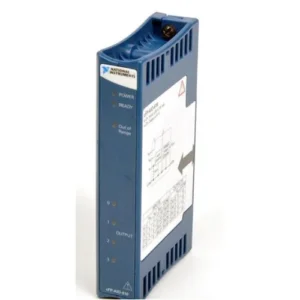

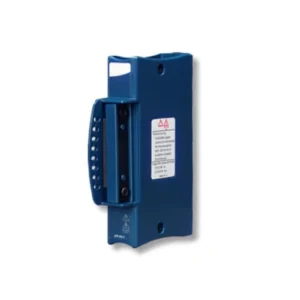

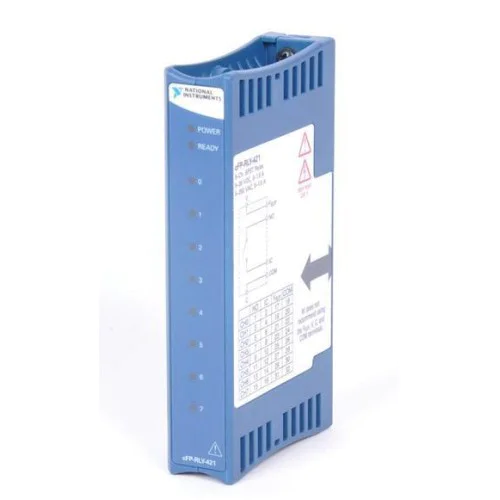

National Instruments CFP-RLY-421 Relay output module

1 image: Click to enlarge

National Instruments · Compact FieldPoint

CFP-RLY-421

Name: CFP-RLY-421
Brand: National Instruments

The CFP-RLY-421 provides eight normally open SPST relay outputs for Compact FieldPoint systems.

ManufacturerNational Instruments

ModelCFP-RLY-421

Product TypeRelay output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-RLY-421

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

ContactsSPST, nonlatching

Operating temperature−40 to 55 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Backplane-powered relays switch externally powered loads. Current limits depend on voltage, load type and temperature.

Hot-swappable module.
Open contacts at power-up.
Individual channel-state indicators.

Verified specifications

Technical data

Verified product specifications.

Resistive switching at 250 VAC or 40 VDC	1.5 A at −40 to 45 °C; 1.0 A at 45 to 55 °C
Resistive switching at 60 VDC	1.0 A
Resistive switching at 120 VDC	0.4 A
Minimum load	10 mA at 5 VDC
Channel-to-ground continuous isolation	250 Vrms
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Platform

CFP-RLY-421

Relay output

Compatibility

Mounts on cFP-BP-x backplanes. Hazardous-voltage wiring requires cFP-CB-1 or a suitable cable.

Check hardware revision and load derating before installation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

cFP-RLY-421 Operating Instructions, 373617A-01Operating Instructions And Specifications · download.ni.com

Open →

NI Compact FieldPoint migration guideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which revisions does this manual cover?

185151C-01 and later. Earlier revisions require document 323617B-01.

How should inductive loads be protected?

NI recommends external flyback diodes for DC loads or MOVs for AC loads.
