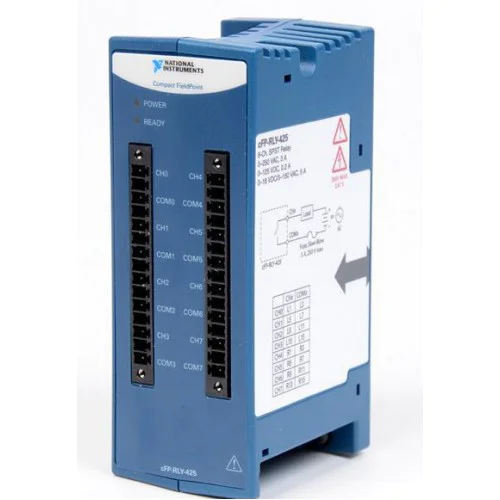

The CFP-RLY-425 provides eight SPST relay outputs for Compact FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Backplane-powered relays switch external loads; current limits depend on voltage, load and temperature.
Verified product specifications.
| Relay channels | 8 |
|---|---|
| Relay type | SPST, normally open, nonlatching |
| Resistive switching capacity | 3 A at 250 VAC; 5 A at 150 VAC; 5 A at 0–18 VDC; 0.2 A at 125 VDC |
| Maximum power requirement | 1.45 W |
| Operating temperature | −40 to 70 °C |
| Continuous channel-to-channel and channel-to-ground isolation | 250 Vrms, CAT II |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Backplane platform
Relay outputs
Mounts on a cFP-BP-x backplane.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. All eight channels are SPST.
OFF, with contacts open.
