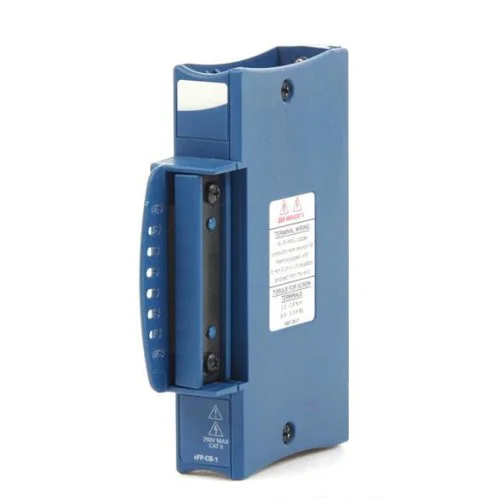

National Instruments CFP-CB-1 General-purpose connector block
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-CB-1

The NI CFP-CB-1 is a general-purpose Compact FieldPoint connector block with 36 terminals and strain relief. It provides field-wiring connections for Compact FieldPoint I/O modules.

ManufacturerNational Instruments
ModelCFP-CB-1
Product TypeGeneral-purpose connector block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-CB-1

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompact FieldPoint
Terminals36
Wiring retentionStrain relief and wire-tie attachment
Operating temperature−40 to 70 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CFP-CB-1 is a wiring accessory, not an acquisition or signal-conditioning I/O module. NI identifies it as a general-purpose connector block suitable for Compact FieldPoint I/O modules.

Its 36 terminals simplify field wiring by avoiding the need to connect multiple wires to one terminal. Strain-relief provisions help secure wiring in applications subject to shock and vibration.

  • General-purpose connection for Compact FieldPoint I/O modules.
  • 36 field-wiring terminals.
  • Strain-relief bar and separate wire-tie connector.
  • V and C terminals for supply and common connections.
Verified specifications

Technical data

Verified product specifications.

Terminal count36 terminals
Terminal typeScrew
I/O connector37-pin
Wire size16–26, copper conductor AWG
Insulation strip length6 mm
Screw-terminal torque0.5–0.6 N·m
Maximum V/C terminal current4; observe lower I/O-module limits and fuse requirements A
Maximum other-terminal current2; observe lower I/O-module limits and fuse requirements A
Weight201 g
Operating temperature−40 to 70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular I/O platform

CFP-CB-1

Field-wiring connector block

Mounting

cFP-BP-x or cFP-180x backplane

Use the connected I/O module's wiring diagram and limits; earlier CFP-CB-1 units have different terminal numbering.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cFP-CB-1 Product SupportOfficial Product Page · ni.com
Open →
cFP-CB-1/2/3/4 Operating Instructions and SpecificationsManual · download.ni.com
Open →
cFP-CB-1 and cFP-CB-3 Operating InstructionsEarlier Manual · download.ni.com
Open →
Connector-block wiring, mounting, and specificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cFP-CB-2View product →
Related model
CFP-CB-3View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CFP-CB-1 an eight-channel I/O module?

No. NI identifies it as a 36-terminal connector block for Compact FieldPoint I/O modules.

Where are signal assignments defined?

Use the connected I/O module's operating instructions. Check the block's numbering because earlier versions differ.

Which connector block does NI recommend for thermocouples?

NI recommends the isothermal cFP-CB-3 for the most accurate cold-junction compensation.
