National Instruments CFP-AI-102 Analog voltage input module

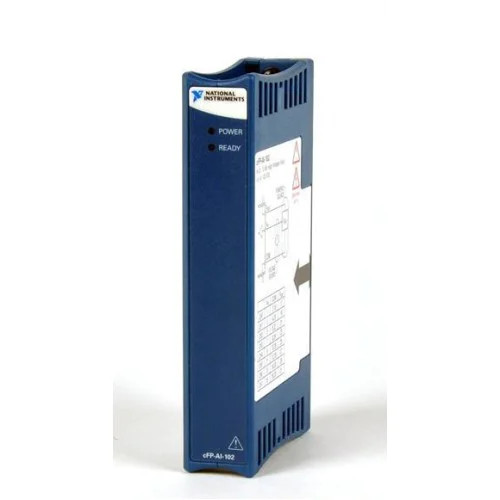

1 image: Click to enlarge

National Instruments · Compact FieldPoint

CFP-AI-102

The National Instruments CFP-AI-102 is an eight-channel, 12-bit analog voltage input module for Compact FieldPoint, with six selectable ranges up to ±120 V.

ManufacturerNational Instruments

ModelCFP-AI-102

Part Number777318-102

Product TypeAnalog voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-AI-102

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs8 voltage channels

Resolution12 bits

Input ranges0–20, 0–60, 0–120, ±20, ±60 and ±120 V

Operating temperature−40 to 70 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This Compact FieldPoint module provides high-voltage analog inputs and hot plug-and-play installation.

The inputs are single-ended and share COM; channels are not individually isolated.

Six voltage ranges.
12-bit conversion.
Hot plug-and-play.

Verified specifications

Technical data

Verified product specifications.

Channel count	8 channels
ADC resolution	12 bits
Input ranges	0–20, 0–60, 0–120, ±20, ±60, ±120 V
Update rate, all channels	360 Hz (2.8 ms)
Input impedance	1.0 MΩ
Signal bandwidth	170 Hz
Channel-to-channel isolation	None
Operating temperature	−40 to 70 °C
