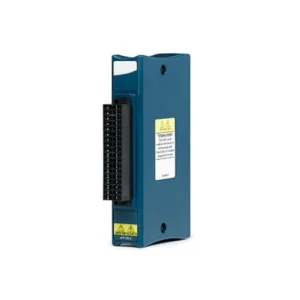

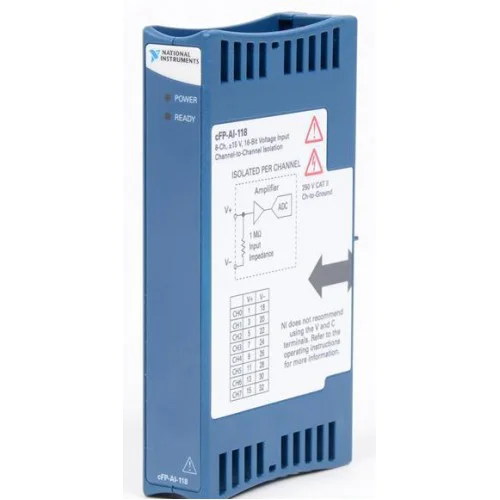

The CFP-AI-118 is an eight-channel, 16-bit differential voltage input module for Compact FieldPoint.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The module receives operating power through its backplane. NI identifies it as cFP-AI-118 in the operating instructions.
Verified product specifications.
| Voltage ranges | 0–1, 0–5, 0–10, 0–15, ±1, ±5, ±10, ±15 V |
|---|---|
| All-channel update rate, unfiltered | 10.42 kHz |
| All-channel update rate, filtering enabled | 3.45 kHz |
| Operating temperature | -40 to 70 °C |
| Channel-to-channel isolation, 5-second dielectric withstand | 750 Vrms |
| Continuous channel-to-ground isolation | 250, Measurement Category II Vrms |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Backplane platform
Voltage input
Mounts on cFP-BP-x backplanes.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI specifies 16-bit ADC resolution.
The wiring instructions identify the cFP-CB-1.
