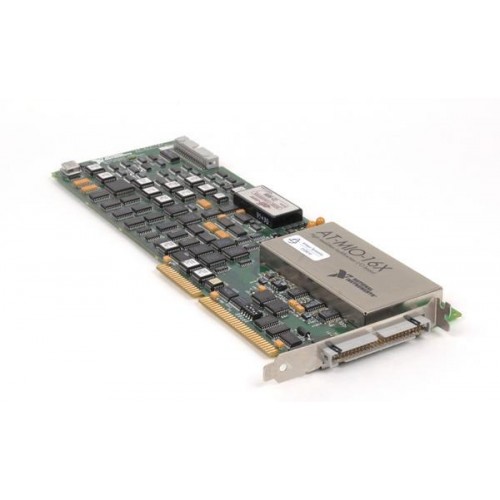

National Instruments AT-MIO-16X Multifunction data acquisition board

1 image: Click to enlarge

National Instruments · Legacy NI DAQ

AT-MIO-16X

Name: AT-MIO-16X
Brand: National Instruments

The National Instruments AT-MIO-16X is a legacy multifunction DAQ board with 16-bit analog input and two analog outputs. Driver selection requires particular care: NI identifies NI-DAQ 6.1 as its last supporting release.

ManufacturerNational Instruments

ModelAT-MIO-16X

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-MIO-16X

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input16 single-ended or 8 differential channels

Input resolution16-bit

Maximum sampling rate100 kS/s

Last supporting driverNI-DAQ 6.1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The AT-MIO-16X belongs to NI's legacy multifunction DAQ range. Its input configuration supports single-ended or differential measurements, with bipolar and unipolar voltage ranges.

NI explicitly lists this model among devices unsupported by NI-DAQ 6.5 and later. Check the intended host software environment before integrating it into an existing system.

Programmable input gains of 1, 2, 5, 10, 20, 50, and 100.
512-word analog input FIFO.
EEPROM stores analog correction constants used by onboard CALDAC circuitry.

Verified specifications

Technical data

Verified product specifications.

Analog input channel configuration	16 single-ended or 8 differential channels
Analog input resolution	16 bit
Maximum analog input sampling rate	100 kS/s
Analog input base ranges	±10; 0 to 10, with programmable gain V
Analog output channels	2, numbered 0 and 1
Analog output resolution	16 bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Legacy multifunction DAQ

Equipment family

AT-MIO-16X

DAQ board

Driver boundary

NI-DAQ 6.1 is the last supporting release listed by NI.

Verify the host interface, operating system, and driver combination before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — Appendix A, DAQ Hardware CapabilitiesReference Manual · download.ni.com

Open →

NI-DAQ 6.9.3 Readme — Products Supported in Prior VersionsDriver Support Reference · download.ni.com

Open →

NI archived procedures for legacy multifunction DAQ boardsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does NI-DAQ 6.9.3 support the AT-MIO-16X?

No. Its readme lists the AT-MIO-16X as unsupported by NI-DAQ 6.5 and later and identifies NI-DAQ 6.1 as the last supporting release.

Where are the AT-MIO-16X hardware capabilities documented?

Appendix A of NI's archived LabVIEW Function and VI Reference Manual includes model-specific analog input and output tables.
