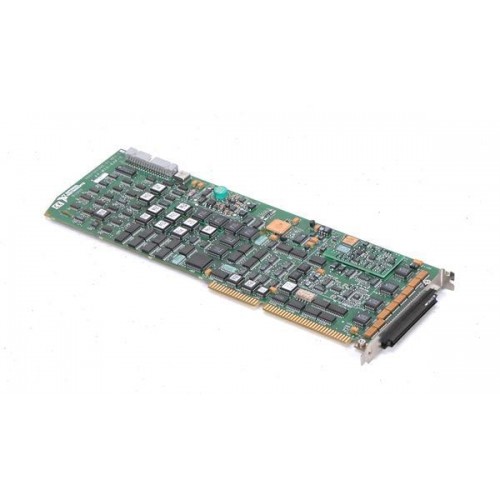

National Instruments AT-MIO-64F-5 Multifunction data acquisition board
1 image: Click to enlarge
National Instruments · AT bus

AT-MIO-64F-5

The National Instruments AT-MIO-64F-5 is a legacy AT-bus multifunction DAQ board with 64 single-ended or 32 differential analog inputs and 12-bit input resolution. NI documents a maximum sampling rate of 200 kS/s and two analog output channels.

ManufacturerNational Instruments
ModelAT-MIO-64F-5
Product TypeMultifunction data acquisition board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-MIO-64F-5

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfaceAT bus
Analog inputs64 single-ended or 32 differential
Input resolution12-bit
Maximum sampling rate200 kS/s
Analog outputs2 channels, 12-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The AT-MIO-64F-5 combines multichannel analog acquisition and analog output on an AT-bus board. Its input circuitry supports programmable gains and a 512-word input FIFO.

Software selection is important for this legacy device. NI's historical support table lists NI-DAQ versions through 6.1 for Windows 9x and Windows NT 4.0, and marks Windows 2000 support as unavailable.

  • Selectable single-ended or differential analog input configuration.
  • Programmable input gains of 0.5, 1, 2, 5, 10, 20, 50, and 100.
  • Software, pretrigger, and posttrigger acquisition support.
  • DMA and interrupt-based data transfers.
Verified specifications

Technical data

Verified product specifications.

Analog input channels64 single-ended or 32 differential
Analog input resolution12 bit
Maximum analog input sampling rate200 kS/s
Analog input FIFO512 words
Programmable input gains0.5, 1, 2, 5, 10, 20, 50, 100 V/V
Analog output channels2 channels
Analog output resolution12 bit
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

AT bus

Host hardware platform

AT-MIO-64F-5

Multifunction DAQ board

Historical software environment

NI-DAQ 4.8.5–6.1 on Windows 9x; NI-DAQ 5.0–6.1 on Windows NT 4.0.

Confirm the host bus and historical driver/OS combination before integration; modern software support is not established here.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — DAQ Hardware CapabilitiesReference Manual · download.ni.com
Open →
LabVIEW Function and VI Reference Manual — Hardware CharacteristicsReference Manual · download.ni.com
Open →
LabVIEW Data Acquisition Basics Manual — Hardware and Driver SupportSoftware And Hardware Reference · download.ni.com
Open →
NI Legacy Multifunction DAQ Board Calibration ProceduresTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the AT-MIO-64F-5 provide?

It supports 64 single-ended or 32 differential analog inputs with 12-bit resolution.

Which historical NI-DAQ versions are documented for this board?

NI lists versions 4.8.5 through 6.1 for Windows 9x and versions 5.0 through 6.1 for Windows NT 4.0. The same table marks Windows 2000 and Macintosh support as unavailable.
