National Instruments AT-MIO-16F-5 Multifunction data acquisition board

1 image: Click to enlarge

National Instruments · Legacy NI multifunction DAQ

AT-MIO-16F-5

Name: AT-MIO-16F-5
Brand: National Instruments

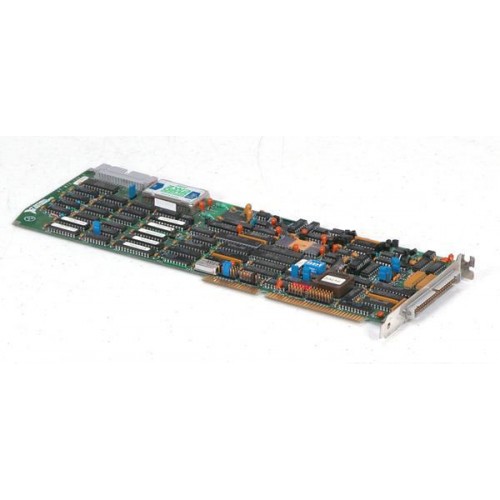

The National Instruments AT-MIO-16F-5 is a legacy multifunction data acquisition board. Driver selection requires particular care: NI's device-specific support list identifies NI-DAQ 6.1 as its last supported release.

ManufacturerNational Instruments

ModelAT-MIO-16F-5

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-MIO-16F-5

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential

ADC resolution12-bit

Maximum sampling rate200 kS/s

Legacy driverNI-DAQ 6.1 or earlier
