National Instruments PXIe-7962 FlexRIO FPGA module

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-7962

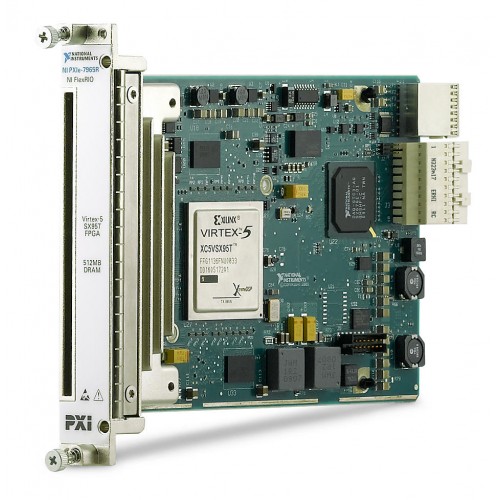

The NI PXIe-7962 is a FlexRIO PXI Express FPGA module documented by NI as PXIe-7962R. It combines a Virtex-5 SX50T FPGA with 512 MB of onboard DRAM for user-programmable instrumentation.

ManufacturerNational Instruments

ModelPXIe-7962

Product TypeFlexRIO FPGA module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7962

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAVirtex-5 SX50T

FPGA slices8,160

DSP resources288 DSP slices

Embedded block RAM4,752 kbit

Onboard DRAM512 MB total; two 256 MB banks

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This module supplies the programmable FPGA portion of a modular FlexRIO system. A compatible FlexRIO adapter module defines the physical signal inputs and outputs, while LabVIEW provides the FPGA programming environment.

The PXIe-7962R and PXIe-7961R use the same SX50T FPGA resources, but the PXIe-7962R adds 512 MB of onboard DRAM. This distinction matters when comparing designs that require external memory.

Virtex-5 SX50T FPGA with 8,160 slices for user-defined logic.
288 DSP slices and 4,752 kbit of embedded block RAM.
Two 256 MB DRAM banks, each with a maximum theoretical bandwidth of 1.6 GB/s.
Modular adapter interface separates FPGA processing from application-specific physical I/O.

Verified specifications

Technical data

Verified product specifications.

FPGA	Virtex-5 SX50T
FPGA slices	8160 slices
DSP slices	288 slices
Embedded block RAM	4752 kbit
Total onboard DRAM	512 MB
DRAM organization	2 banks, 256 MB per bank
Bus interface	x4 PXI Express, specification v1.0 compliant
DMA channels	16 channels
Adapter-interface digital I/O	132 single-ended channels or 66 differential pairs, or a combination
Operating temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis and backplane platform

FlexRIO PXIe-7962

User-programmable FPGA module

Physical I/O

Defined by the selected compatible FlexRIO adapter module.

Check the exact adapter, driver, LabVIEW version, and operating-system support before configuring a system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI FlexRIO FPGA Module Installation Guide and SpecificationsInstallation Guide And Specifications · docs-be.ni.com

Open →

PXIe-7962 Dimensional DrawingsDimensional Drawings And CAD Resource Page · ni.com

Open →

NI FlexRIO Adapter and NI FlexRIO FPGA Module CompatibilityCompatibility Reference · ni.com

Open →

Introduction to Using DRAM with NI FPGA DevicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why does the documentation use PXIe-7962R?

NI's PXIe-7962 certification page explicitly identifies the hardware as PXIe-7962R. The catalog retains PXIe-7962, while the technical manual uses the R-suffix designation.

How does its memory differ from the PXIe-7961?

NI lists 512 MB of DRAM for the PXIe-7962R and no onboard DRAM for the PXIe-7961R. Both use a Virtex-5 SX50T FPGA.

Which chassis slots support this module?

The installation guide specifies x4, x8, and x16 PXI Express slots or PXI Express hybrid slots.
