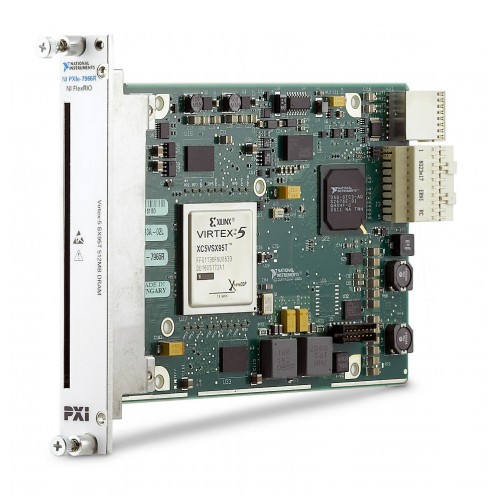

National Instruments PXIe-7966 FPGA module for FlexRIO
1 image: Click to enlarge
National Instruments · PXI Express

PXIe-7966

The NI PXIe-7966 is a PXI Express FPGA module for FlexRIO with a Virtex-5 SX95T FPGA and 512 MB onboard DRAM. It provides configurable digital I/O and supports custom instruments programmed with LabVIEW FPGA.

ManufacturerNational Instruments
ModelPXIe-7966
Product TypeFPGA module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7966

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
FPGAVirtex-5 SX95T, speed grade -2
FPGA slices14,720
DSP resources640 DSP48 slices
Onboard DRAM512 MB across two 256 MB banks
Digital I/O132 single-ended lines configurable as 66 differential pairs
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7966 provides the FPGA processing portion of a modular FlexRIO instrument. NI documents the module with a Virtex-5 SX95T FPGA, onboard memory, and a PXI Express interface.

FlexRIO adapter modules provide the application-facing analog or digital I/O. Peer-to-peer streaming supports direct data transfers between supported modules without routing the data through the host processor.

  • Reconfigurable Virtex-5 SX95T FPGA with speed grade -2.
  • 8,784 kbit embedded block RAM.
  • Two onboard DRAM banks support buffering for FPGA applications.
  • Supports peer-to-peer streaming with supported FPGA and PXI Express devices.
Verified specifications

Technical data

Verified product specifications.

FPGAVirtex-5 SX95T
FPGA speed grade-2
FPGA slices14720 slices
DSP48 slices640 slices
Embedded block RAM8784 kbit
Total onboard DRAM512 MB
DRAM organization2 banks, 256 MB per bank
General-purpose digital I/O132 single-ended, 66 differential, or a combination of both
Bus interfacex4 PXI Express, specification v1.0 compliant
Slot compatibilityx4, x8, and x16 PXI Express or PXI Express hybrid slots
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis and bus platform

FlexRIO

Modular FPGA and I/O family

PXIe-7966

Reconfigurable FPGA module

Confirm the selected adapter module, software version, and chassis slot requirements before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXIe-7966 Product SupportOfficial Product Page · ni.com
Open →
NI FlexRIO FPGA Module Installation Guide and SpecificationsInstallation Guide And Specifications · docs-be.ni.com
Open →
Introduction to Using DRAM with NI FPGA DevicesTechnical resource
Open →
An Introduction to Peer-to-Peer StreamingTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why do some NI documents call this module PXIe-7966R?

NI's product support page uses PXIe-7966, while its FlexRIO installation guide and FPGA resource tables use PXIe-7966R. The catalog model is retained as PXIe-7966.

Does the PXIe-7966 provide analog I/O directly?

NI describes the FPGA module as providing configurable digital lines. Analog I/O is provided through an appropriate FlexRIO adapter module.

How is the 512 MB onboard memory organized?

The module has two DRAM banks with 256 MB per bank.
