National Instruments PXI-8431/2 Two-port RS-485/RS-422 serial interface module

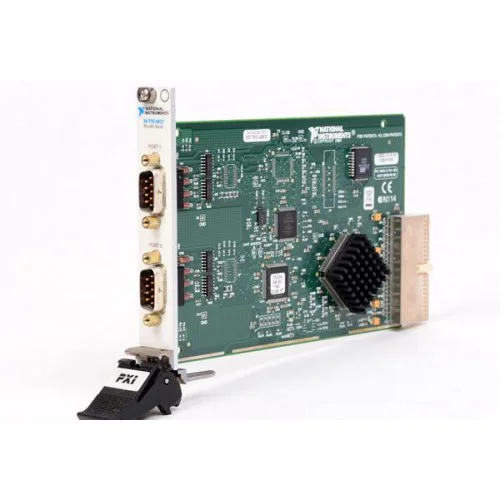

1 image: Click to enlarge
National Instruments · PXI

PXI-8431/2

The National Instruments PXI-8431/2 provides two non-isolated RS-485/RS-422 serial ports for PXI systems. It supports baud rates up to 3 Mbaud, with a 2 Mbaud limit in two-wire automatic transceiver-control mode.

ManufacturerNational Instruments
ModelPXI-8431/2
Part Number778984-01
Product TypeTwo-port RS-485/RS-422 serial interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8431/2

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Serial ports2
ProtocolsRS-485 and RS-422
Maximum baud rate3 Mbaud; 2 Mbaud in two-wire automatic mode
Port connectorsDB-9 male
IsolationNon-isolated
