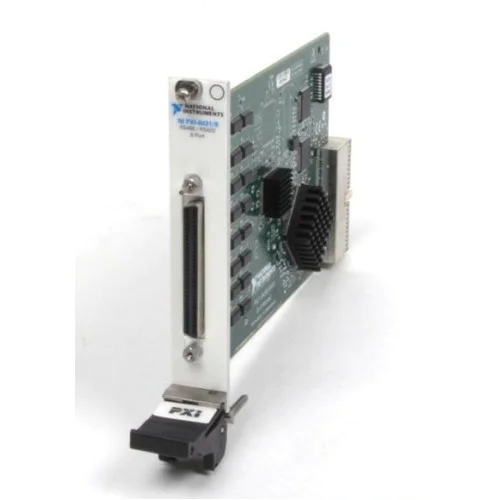

The National Instruments PXI-8431/8 is an eight-port, non-isolated PXI serial interface for RS-485 and RS-422 communication, supporting baud rates up to 3 Mbaud.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-8431/8 adds eight RS-485/RS-422 serial ports to a PXI system. NI lists this exact model among the interfaces supported by NI-Serial 20.0.
Its 68-pin SCSI connection differs from the VHDCI connector used by the similarly named PXIe-8431/8. Verify the module identity and cable connector before integrating it.
Verified product specifications.
| Platform | PXI |
|---|---|
| Serial ports | 8 ports |
| Serial standards | RS-485/RS-422 |
| Isolation | None |
| Maximum baud rate | 3000 kbaud |
| Maximum baud rate in two-wire auto-control mode | 2000 kbaud |
| Connector | 68-pin SCSI |
| FIFO size | 128 bytes |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Hardware platform
Eight-port RS-485/RS-422 interface
Listed in NI-Serial 20.0 supported hardware.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists this model for RS-485/RS-422, not RS-232.
No. NI identifies the PXI-8431/8 as non-isolated.
