National Instruments PXI-8431/4 Four-port RS-485/RS-422 serial interface module

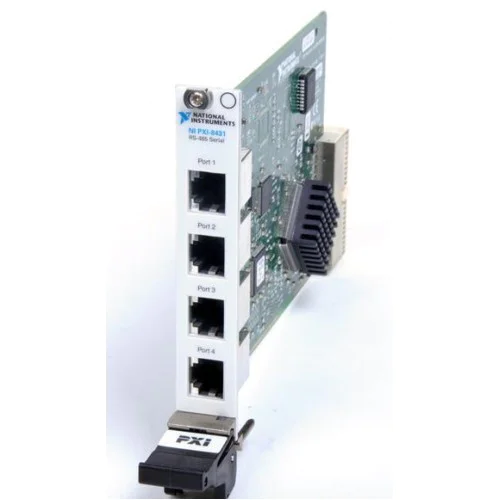

1 image: Click to enlarge
National Instruments · PXI

PXI-8431/4

The National Instruments PXI-8431/4 is a four-port, non-isolated RS-485/RS-422 serial interface for PXI systems. NI lists a maximum baud rate of 3 Mbaud, with a lower limit in two-wire automatic transceiver-control mode.

ManufacturerNational Instruments
ModelPXI-8431/4
Part Number778985-01
Product TypeFour-port RS-485/RS-422 serial interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8431/4

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPXI
Serial ports4
StandardsRS-485 and RS-422
IsolationNon-isolated
Connector10-position modular jack (10P10C)
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-8431/4 adds four RS-485/RS-422 serial ports to a PXI system. It is the four-port member of the PXI-8431 family, alongside the two-port PXI-8431/2 and eight-port PXI-8431/8.

NI documents 10P10C modular connectors and 128-byte FIFOs. Check the documented pinout and transceiver-control mode before selecting cabling and setting communication parameters.

  • Four RS-485/RS-422 serial ports on a PXI interface.
  • Maximum baud rate of 3 Mbaud; two-wire automatic control is limited to 2 Mbaud.
  • 128-byte FIFO size.
  • Listed in NI-Serial 21.3 and NI-Serial 19.0 for LabVIEW Real-Time supported-interface tables.
Verified specifications

Technical data

Verified product specifications.

Serial port count4 ports
Serial standardsRS-485/RS-422
IsolationNo
Maximum baud rate3 Mbaud
Maximum baud rate in two-wire automatic control mode2 Mbaud
I/O connector10-position modular jack (10P10C)
FIFO size128 bytes
Board dimensions100 × 160 mm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

PXI-8431/4

Four-port RS-485/RS-422 serial interface

Driver reference

NI-Serial 21.3 lists this model as supported hardware.

Check the 10P10C pinout and driver/OS requirements before integration; this model is non-isolated.
