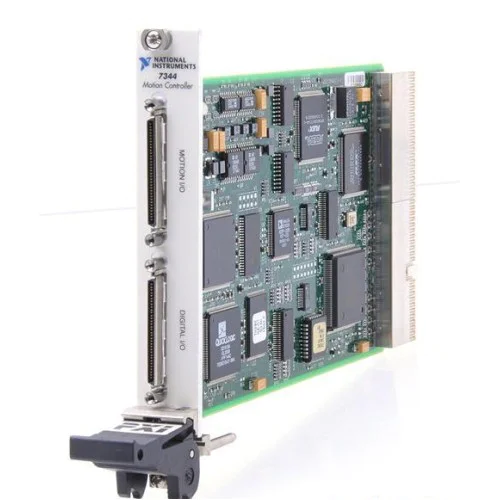

PXI-7344

The NI PXI-7344 is a four-axis stepper/servo motion controller for PXI systems. It supports coordinated trajectories and onboard motion-program execution.

ManufacturerNational Instruments

ModelPXI-7344

Part Number777935-01

Product Type4-axis stepper/servo motion controller module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7344

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Motion axes4

Motor typesStepper, brushed servo, brushless servo

Bus interfacePXI/CompactPCI

Digital I/O32 channels

Analog input resolution12 bits

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7344 provides independent or coordinated motion control. Its dual-processor architecture and embedded real-time operating system allow motion programs to run on the controller rather than relying entirely on host execution.

Dedicated motion connections include encoder feedback, limit and home inputs, and analog inputs. The hardware manual documents signal assignments and electrical requirements for integrating external motion equipment.

Coordinated linear, circular, point-to-point, gearing, and vector-space motion.
Contouring and blended trajectory control.
Onboard multitasking motion-program execution.
Encoder and analog feedback resources.

Verified specifications

Technical data

Verified product specifications.

Number of axes	4 axes
Digital I/O channels	32 channels
Analog input resolution	12 bits
PID update period range	62.5–500 µs/sample
Maximum PID update performance per axis	62.5 µs/axis
Four-axis PID update period	250 total µs

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI/CompactPCI

Controller bus interface

PXI-7344

Four-axis motion controller

Driver context

NI-Motion 6.0 explicitly lists the PXI-7344 among supported controllers.

Check the selected NI-Motion release, operating system, drive signals, and wiring before integration; historical driver support does not establish modern OS compatibility.
