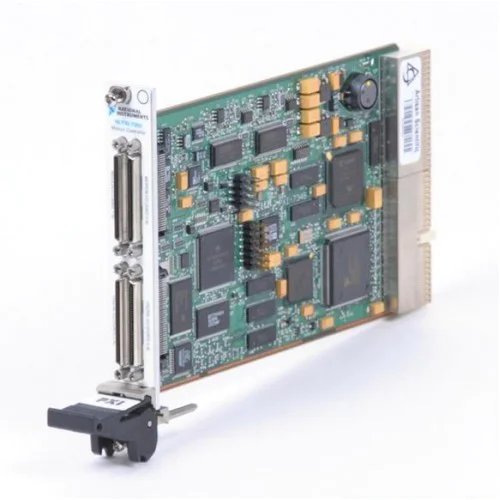

National Instruments PXI-7358 8-axis stepper/servo motion controller module
1 image: Click to enlarge
National Instruments · PXI

PXI-7358

The National Instruments PXI-7358 is an eight-axis PXI motion controller for stepper, brushed servo and brushless servo systems. It provides coordinated motion control and sinusoidal commutation.

ManufacturerNational Instruments
ModelPXI-7358
Part Number778540-08
Product Type8-axis stepper/servo motion controller module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7358

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Axes8
Motor typesStepper, brushed servo and brushless servo
Analog inputs8 channels, 16-bit resolution
Digital I/O64 channels
DriverNI-Motion
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-7358 supports blended trajectories and coordinated circular, linear, point-to-point, gearing and vector-space motion. Motion operations can run in embedded real-time or host-centric programming environments.

NI-Motion lets users start all axes together while assigning acceleration and velocity profiles to each axis. Onboard analog inputs and digital I/O complement the motion-control functions.

  • Eight-axis stepper/servo control.
  • Sinusoidal commutation for brushless motor control.
  • Coordinated circular and linear motion with trajectory blending.
  • Onboard 16-bit analog acquisition and 64 digital I/O channels.
Verified specifications

Technical data

Verified product specifications.

Number of axes8 axes
Supported motor typesStepper; brushed servo; brushless servo
Analog input channels8 channels
Analog input resolution16 bits
Digital I/O channels64 channels
Eight-axis PID update period250 total µs
Fastest PID update period62.5 per 2 axes µs
Servo command output range±10 V
Maximum step pulse rate8 MHz
External I/O connectorsTwo motion I/O and two digital I/O connectors; 68-pin female VHDCI
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Module platform

PXI-7358

Eight-axis motion controller

Software

NI-Motion driver

Check driver/OS support and drive wiring before integration; chassis model compatibility is not established here.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-7358 Product PageProduct Page · ni.com
Open →
NI 7350 User Manual and SpecificationsUser Manual And Specifications · docs-be.ni.com
Open →
NI 7350 Installation, Signal Connections and Connector PinoutsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which motors does the PXI-7358 support?

It supports stepper, brushed servo and brushless servo motors, with sinusoidal commutation for brushless control.

Does the 62.5 µs PID update period apply to all eight axes?

No. The manual specifies 62.5 µs per two axes and a total eight-axis PID update period of 250 µs.

What is the official ordering part number?

NI identifies the PXI-7358 with part number 778540-08.
