National Instruments · PXI

PXI-6541

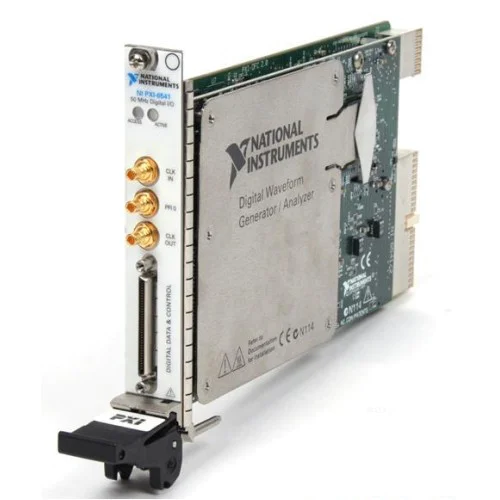

The National Instruments PXI-6541 is a PXI digital waveform generator/analyzer with a maximum clock rate of 50 MHz. It offers selectable 1.8, 2.5, and 3.3 V logic levels for digital interfacing.

ManufacturerNational Instruments

ModelPXI-6541

Product TypeDigital waveform generator/analyzer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6541

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FunctionDigital waveform generation and acquisition

Maximum clock rate50 MHz

Selectable logic levels1.8, 2.5, and 3.3 V

DriverNI-HSDIO

Digital connector family68-pin VHDCI HSDIO

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6541 provides digital stimulus and response acquisition within a PXI test system. Its selectable logic levels support interfacing to digital electronics without treating it as an analog waveform generator.

The module uses NI's Synchronization and Memory Core architecture. NI identifies the 6541 among the digital instruments supporting data-delay adjustments for generation and acquisition timing.

Digital waveform generation and acquisition at clock rates up to 50 MHz.
Selectable 1.8, 2.5, and 3.3 V logic levels.
NI-HSDIO driver support for instrument programming.
Data-delay controls for adjusting generation and acquisition timing.

Verified specifications

Technical data

Verified product specifications.

Platform	PXI
Maximum clock rate	50 MHz
Maximum data rate	50 Mbit/s
Selectable logic levels	1.8, 2.5, 3.3 V
Digital I/O connector	68-pin VHDCI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6541

Digital waveform generator/analyzer

Software interface

NI-HSDIO; the NI-HSDIO 15.0 readme explicitly lists PXI-6541 support.

Confirm the unit's memory option, driver/OS combination, and required cable assembly before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Digital Waveform Instruments Product FlyerProduct Flyer · ni.com

Open →

NI-HSDIO 15.0 ReadmeDriver Readme · download.ni.com

Open →

Digital Instrument Cable and Accessory CompatibilityAccessory Compatibility Guide · ni.com

Open →

Synchronous Communications and Timing Configurations in Digital DevicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-6541 a 50 MHz or 100 MHz instrument?

The PXI-6541 has a maximum clock rate of 50 MHz. The related PXI-6542 is the 100 MHz model.

Which selectable logic levels are documented for the PXI-6541?

NI's product flyer lists selectable levels of 1.8, 2.5, and 3.3 V.

Which driver supports the PXI-6541?

The PXI-6541 uses NI-HSDIO. NI's version 15.0 readme explicitly includes this model; verify the selected driver release against the intended operating system.

Can SCSI terminal blocks connect directly to the module?

NI specifies VHDCI accessories for direct connection. Its guide requires the 653x Cable Adapter for supported SCSI accessories, with SCB-68 and SCB-68A configured in Direct Feedthrough Mode.
