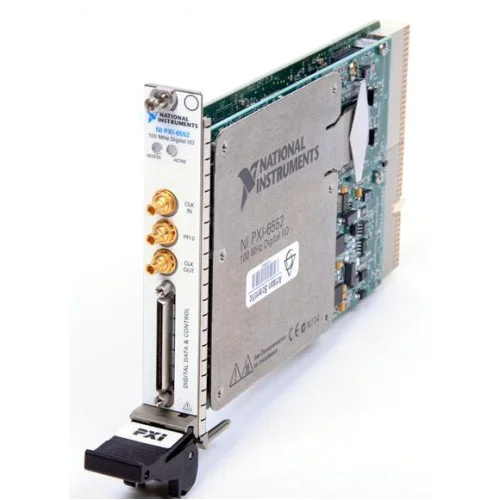

National Instruments PXI-6552 Digital waveform generator/analyzer
1 image: Click to enlarge
National Instruments · PXI

PXI-6552

The National Instruments PXI-6552 is a 100 MHz digital waveform generator/analyzer with 20 channels and programmable voltage levels for digital electronics test.

ManufacturerNational Instruments
ModelPXI-6552
Part Number778539-01 · 778539-02
Product TypeDigital waveform generator/analyzer
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6552

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum clock rate100 MHz
Digital channels20
Voltage programming resolution10 mV
Digital connectorVHDCI
Instrument driverNI-HSDIO
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6552 combines digital stimulus generation and response acquisition. Its onboard memory supports waveform storage, sequencing and looping, while its Synchronization and Memory Core architecture supports coordinated mixed-signal test systems.

NI lists three PXI-6552 ordering numbers. The catalog record does not identify which variant is represented, so the installed memory capacity must be confirmed separately.

  • Internal or external clock operation up to 100 MHz.
  • Programmable logic voltage levels with 10 mV resolution.
  • Onboard waveform memory with sequencing and looping.
  • Hardware comparison functionality documented in the NI-HSDIO driver release notes.
  • Digital Waveform Editor integration for waveform creation and editing.
Verified specifications

Technical data

Verified product specifications.

Maximum clock rate100 MHz
Digital channel count20 channels
Programmable voltage level range-2.0 to 5.5; not an unconditional full-range output specification at every clock rate or load V
Voltage programming resolution10 mV
Digital I/O connector typeVHDCI
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6552

Digital waveform generator/analyzer

Software

NI-HSDIO 15.0 explicitly lists PXI-6552 support; check the selected driver release for operating-system and development-environment requirements.

Confirm the memory variant, driver environment and voltage/load limits before integrating the module.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-HSDIO 15.0 ReadmeDriver Documentation · download.ni.com
Open →
Digital Instrument Cable and Accessory CompatibilityCompatibility Guide · ni.com
Open →
NI Instrumentation Newsletter: Build Flexible Test Systems with 100 MHz Digital I/OManufacturer Technical Overview · search.ni.com
Open →
Interfacing NI PXI-655x Digital Waveform Generator/Analyzers to ECL Logic FamiliesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the PXI-6552 differ from the PXI-6551?

The PXI-6552 is rated for a maximum clock rate of 100 MHz, while the PXI-6551 is rated for 50 MHz.

Which driver supports the PXI-6552?

NI-HSDIO supports the PXI-6552. NI-HSDIO 15.0 explicitly includes it in the supported hardware table; software environment support must be checked for the chosen release.

Which cable does NI recommend for digital connections?

NI lists the SHC68-C68-D4 shielded cable as a recommended option for the 6552 family. Review the accessory guide for cable length choices, terminal accessories and connection limitations.

Is the installed memory capacity known?

No. NI lists multiple PXI-6552 ordering numbers, but this catalog record does not identify the specific variant.
