PXI-6551

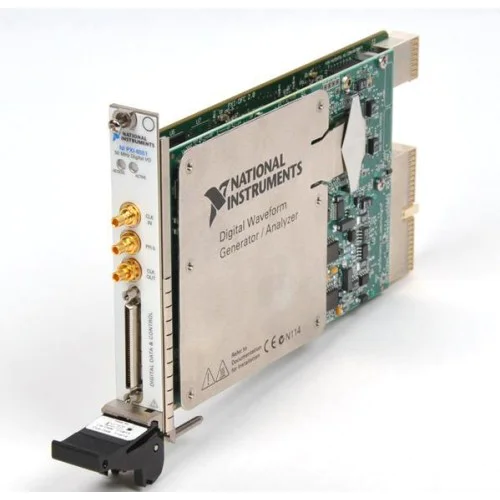

The National Instruments PXI-6551 is a 50 MHz, 20-channel PXI digital waveform generator/analyzer for digital stimulus-response testing. NI identifies memory-chip functional testing and bidirectional communication as product applications.

ManufacturerNational Instruments

ModelPXI-6551

Part Number778538-01 · 778538-02

Product TypeDigital waveform generator/analyzer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6551

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum clock rate50 MHz

Digital channels20

Instrument functionDigital waveform generation and analysis

Programmable voltage range-2.0 to 5.5 V; consult device specifications for operating restrictions

Driver familyNI-HSDIO

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6551 combines digital stimulus generation and response analysis in the PXI platform. Its 20 channels and 50 MHz clock capability support memory-chip functional testing and bidirectional digital communication.

NI-HSDIO documentation lists the PXI-6551 as supported hardware and describes per-cycle, per-pin tristate support for NI 655x devices. NI also provides application guidance for interfacing PXI-655x instruments to ECL logic using suitable wiring, voltage settings, and termination.

Digital waveform generation and response analysis in one PXI instrument.
20 digital channels with a maximum clock rate of 50 MHz.
Programmable voltage levels spanning -2.0 to 5.5 V, subject to device operating restrictions.
Per-cycle, per-pin tristate support through NI-HSDIO for NI 655x devices.

Verified specifications

Technical data

Verified product specifications.

Maximum clock rate	50 MHz
Digital channel count	20 channels
Programmable voltage range	-2.0 to 5.5; operating restrictions apply V
Platform	PXI
Per-cycle, per-pin tristate	Supported for NI 655x devices through NI-HSDIO

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrument platform

PXI-6551

Digital waveform generator/analyzer

Software driver

NI-HSDIO documentation explicitly lists PXI-6551 support.

Confirm the exact hardware variant, voltage restrictions, and NI-HSDIO release requirements before system integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-6551 Official Product Support PageProduct Support Page · ni.com
