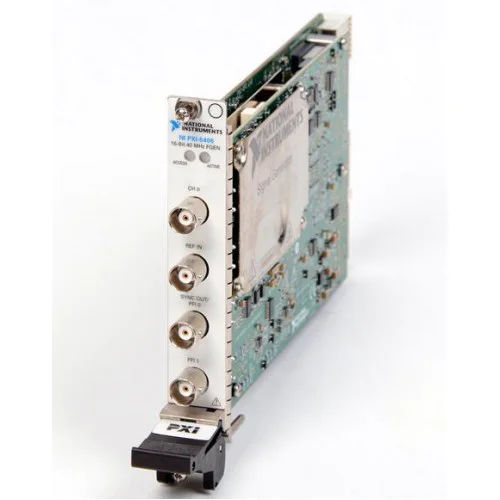

National Instruments PXI-5406 Function generator
1 image: Click to enlarge
National Instruments · PXI

PXI-5406

The National Instruments PXI-5406 is a single-channel, 16-bit PXI function generator with a 40 MHz sine-wave capability. It uses direct digital synthesis to generate standard functions, pseudorandom noise, and DC signals.

ManufacturerNational Instruments
ModelPXI-5406
Part Number779657-01
Product TypeFunction generator
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5406

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPXI
Analog output1 channel, BNC
DAC resolution16 bits
Maximum sine frequency40 MHz
DriverNI-FGEN
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI-FGEN provides software control and frequency-list support. Check the selected driver release against the host operating system and development environment before integrating the module.

  • Direct digital synthesis for waveform generation.
  • Software-selectable 50 Ω or 75 Ω output impedance.
  • External reference-clock input and programmable trigger connections.
  • Frequency-list generation supported through NI-FGEN.
Verified specifications

Technical data

Verified product specifications.

Output channels1
DAC resolution16 bits
Maximum sine frequency40 MHz
Maximum square frequency25 MHz
Maximum triangle and ramp frequency5 MHz
Maximum sine and square sample rate400 MS/s
Amplitude range into 50 Ω5.64 mV peak-to-peak to 10 V peak-to-peak
Output impedance50 or 75, software-selectable Ω
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrumentation platform

PXI-5406

Function generator module

Software control

NI-FGEN; support is release-dependent.

Maximum output frequency depends on waveform type; 40 MHz does not apply to every function.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-5406 Product PageProduct Page · ni.com
Open →
PXI-5406 SpecificationsSpecifications · ni.com
Open →
NI-FGEN 2.4 ReadmeHistorical Driver Documentation · download.ni.com
Open →
PCI/PXI-5406 Letter of VolatilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-5402View product →
Related model
PXI-5401View product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which waveforms can the PXI-5406 generate?

NI lists sine, square, triangle, ramp, pseudorandom noise, and DC signals.

Does every waveform reach 40 MHz?

No. Maximum frequencies are 40 MHz for sine, 25 MHz for square, and 5 MHz for triangle and ramp.

Which driver supports the PXI-5406?

NI-FGEN supports the module. NI-FGEN 2.4 documentation explicitly lists PXI-5406 support and frequency-list operation; verify requirements for the particular release you plan to use.
