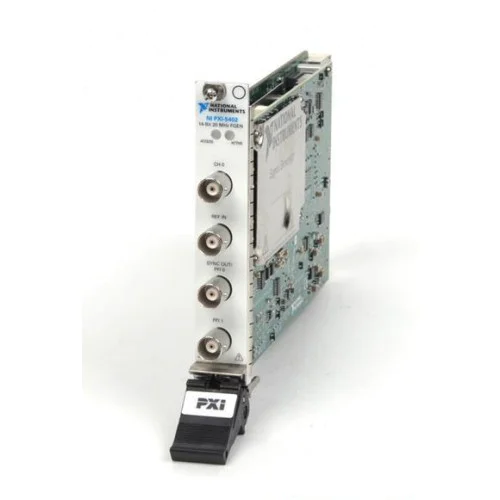

The NI PXI-5402 is a single-channel, 14-bit PXI function generator with 20 MHz bandwidth and direct digital synthesis.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This module provides standard-function signal generation within the PXI platform. NI identifies sine, square, triangle, ramp, pseudorandom noise, and DC as supported signal types.
NI-FGEN 20.0 explicitly lists PXI/PCI-5402 hardware support. Use the release-specific software requirements when planning a host configuration.
Verified product specifications.
| Bandwidth | 20 MHz |
|---|---|
| Output channels | 1 channel |
| Resolution | 14 bit |
| Waveform synthesis | Direct digital synthesis (DDS) |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrumentation platform
Function generator module
NI-FGEN 20.0 lists PXI/PCI-5402 support.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The PXI-5402 is 14-bit. NI's historical catalog separately identifies the PXI-5406 as a 16-bit, 40 MHz model.
The NI-FGEN 20.0 readme lists PXI/PCI-5402 among supported hardware. Consult that release's requirements for the intended software environment.
