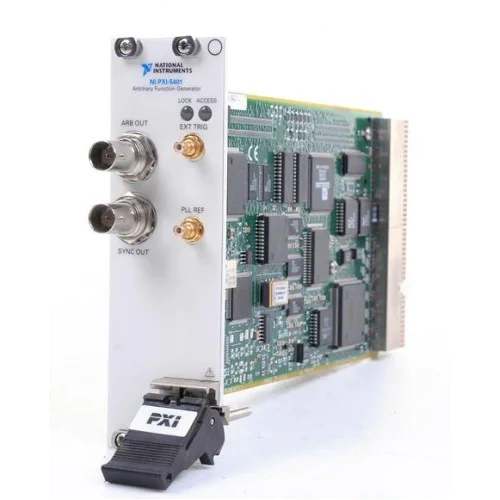

The NI PXI-5401 is a single-channel, 12-bit PXI function generator with sine output up to 16 MHz.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This one-slot PXI module combines DDS generation with waveform memory. Output amplitude depends on load impedance.
Software support is version-specific. NI-FGEN 15.0 lists the PXI-5401 as supported under Windows XP, but not Windows 8.1, Windows 8, Windows 7, or Windows Vista.
Verified product specifications.
| Analog output channels | 1 |
|---|---|
| Resolution | 12 bits |
| Maximum update rate | 40 MHz |
| Maximum sine / TTL SYNC frequency | 16 MHz |
| Maximum square / ramp / triangle frequency | 1 MHz |
| Frequency resolution | 9.31 mHz |
| Waveform memory | 16,384 16-bit samples |
| Output range | ±5 V into 50 Ω; ±10 V into high impedance |
| Output attenuation | 0–73 dB |
| Output impedance | 50 or 75, software selectable Ω |
| Connectors | ARB and SYNC: BNC; PLL reference and external trigger: SMB |
| Operating temperature | 0–50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrumentation platform
Function generator
Front-panel PLL Ref, internal, or PXI_CLK10
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
9.31 mHz, not 9.31 MHz.
No. Its hardware support table lists Windows XP support, but excludes Windows 7, Vista, 8, and 8.1 for the PXI-5401.
No. The readme explicitly excludes NI PXI/PCI-5401 devices from LabVIEW Real-Time support.
