National Instruments · PXI

PXI-2593

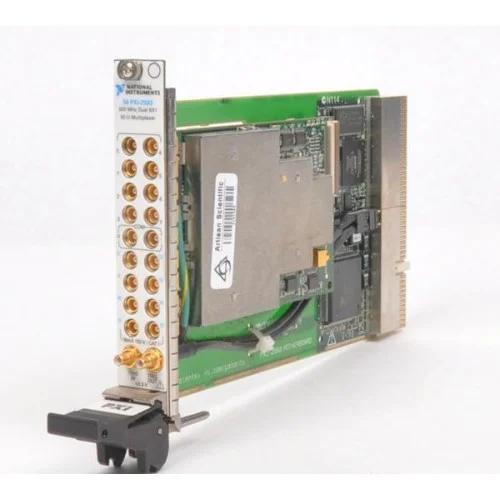

The National Instruments PXI-2593 is a 50 ohm, 500 MHz RF multiplexer/matrix switch. Its programmable architecture supports unterminated multiplexers, externally terminated multiplexers, and an 18-terminal flexible sparse matrix.

ManufacturerNational Instruments

ModelPXI-2593

Product TypeRF multiplexer/matrix switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2593

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Signal class500 MHz RF switching

Characteristic impedance50 ohm

Signal connectorsMCX

Unterminated configurations16x1, dual 8x1, or quad 3x1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2593 provides configurable RF routing rather than a single fixed switch topology. NI documents 16x1, dual 8x1, and quad 3x1 unterminated configurations, plus 8x1 and dual 4x1 externally terminated configurations.

Software-configurable multiplexer and sparse-matrix operation.
18-terminal flexible sparse matrix supports user-defined dimensions.
MCX coaxial connections for RF signal cabling.
Topology selection through NI MAX or NI-SWITCH.

Verified specifications

Technical data

Verified product specifications.

RF frequency class	500 MHz
Characteristic impedance	50 ohm
Signal channels	16 channels
Sparse-matrix terminals	18 terminals
Signal connector type	MCX
Integrated termination	None; terminated configurations require external loads

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2593

Configurable RF multiplexer/matrix

Signal interface

MCX

Confirm the PXI-2593 model, chassis slot support, and driver environment; do not substitute PXIe-2593 specifications.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Advanced Signal Routing with the PXI/PXIe-2593 and SCXI-1193 RF SwitchesApplication Note · ni.com

Open →

RF Switch Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

PXI-2593 Product CertificationsProduct Certification Page · ni.com

Open →

Using the PXI-2593 50 Ohm RF Switch in a 75 Ohm ConfigurationTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-2593 include internal termination?

No. Terminated configurations use external loads. Break-before-make operation briefly leaves channels unterminated during switching, so sensitive active sources require particular care.

Can it operate as more than a 16x1 multiplexer?

Yes. NI also documents dual 8x1 and quad 3x1 unterminated multiplexers, externally terminated configurations, and an 18-terminal flexible sparse matrix.

Which signal connectors does it use?

The PXI-2593 uses MCX connectors. Consult NI's RF switch accessory guide when selecting mating cables.
