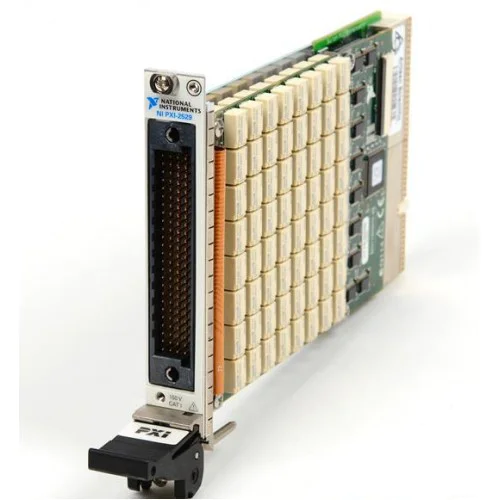

The NI PXI-2529 is a 128-crosspoint, 2-wire matrix switch. Terminal block selection configures the module as a 4x32 or 8x16 matrix.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for high-channel-count switching, the PXI-2529 contains two matrix banks, each with four rows and sixteen columns. Front-mounted terminal blocks arrange these banks into the required topology.
Electromechanical relays provide low thermal offset for low-voltage measurements. Onboard relay counting supports relay monitoring, while hardware triggers enable deterministic switching operation.
Verified product specifications.
| Crosspoints | 128 |
|---|---|
| Switching mode | 2-wire |
| Matrix configurations | 4x32 or 8x16; terminal-block dependent |
| Maximum switching voltage, DC | 150 V |
| Maximum switching current, DC | 1 A |
| Scan rate | 120 cycles/s |
| Switch bandwidth | 10 MHz |
| Relay type | Electromechanical |
| Bus connection | PXI Hybrid |
| Front-panel connector | 100-pin HDI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module bus connection
Matrix switching module
TB-2634, TB-2635, or TB-2636 terminal blocks
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies it as a 128-crosspoint, 2-wire PXI matrix switch module.
TB-2634 provides 4x32 ribbon-header connections; TB-2636 provides 4x32 screw-terminal connections. TB-2635 provides an 8x16 screw-terminal matrix.
NI lists 120 cycles/s. This is a scan-rate specification, not a 100 ns switching-time specification.
