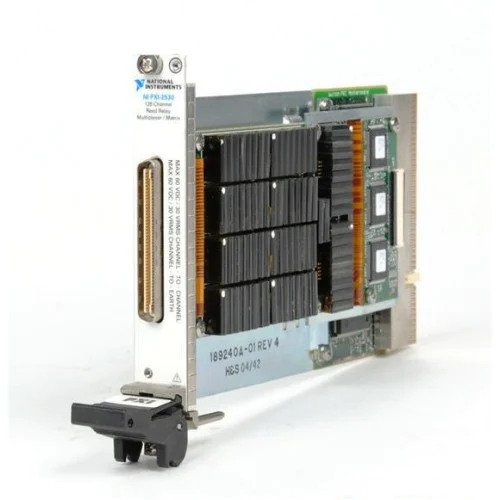

The NI PXI-2530 is a 128-channel reed-relay multiplexer/matrix switch module for PXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Supported configurations span 1-, 2-, and 4-wire multiplexers and 1- or 2-wire matrices. Eight interconnected multiplexer banks also support independent operation.
Verified product specifications.
| Maximum switching voltage | 60 VDC / 30 VACrms, CAT I; channel-to-channel and channel-to-ground |
|---|---|
| Maximum current | 0.4 per terminal or internal path A |
| Maximum switching power | 10 per channel, resistive W |
| Relay operate/release time | 555 µs |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Hardware platform
Multiplexer/matrix switching
The NI 176-pin cable terminates in four 50-pin female D-SUB connectors.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI specifies this cable for multiplexer use only; matrix topologies are not supported.
Its four 50-pin female D-SUB connectors can connect directly to NI TBX-50 terminal blocks. Consult the cable guide for signal pin assignments.
