National Instruments NI 9974 36-position spring terminal plug

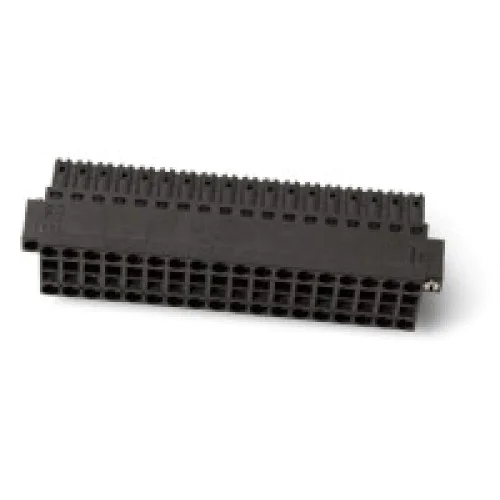

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI 9974

The NI 9974 is a 36-position spring terminal connection accessory for compatible C Series modules used in CompactDAQ and CompactRIO systems. It is a terminal plug, not a data acquisition module.

ManufacturerNational Instruments

ModelNI 9974

Part Number785502-01 · 196740-01

Product Type36-position spring terminal plug

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9974

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product typeSpring terminal plug

Connection positions36

System platformsCompactDAQ and CompactRIO

Manufacturer part numbers785502-01; 196740-01

Mechanical resources2D drawings and 3D CAD models for both part numbers
