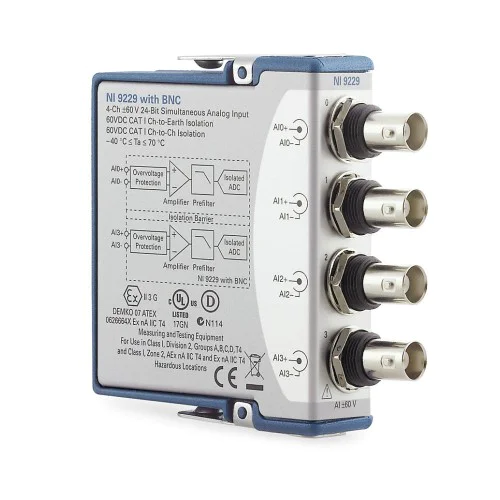

The NI-9229 is a four-channel C Series differential voltage input module with a ±60 V input range, 24-bit resolution and simultaneous sampling at up to 50 kS/s per channel.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The NI-9229 provides general-purpose differential voltage acquisition. Its isolated, floating input architecture helps reduce measurement errors associated with ground loops.
NI offers multiple NI-9229 connector variants. The supplied catalog references part number 780180-01 but describes screw terminals; NI identifies 780180-01 as the BNC version. Confirm the module label and front connectors before selecting wiring or applying variant-specific isolation limits.
Verified product specifications.
| Differential analog input channels | 4 channels |
|---|---|
| Nominal input range | -60 to +60 V |
| ADC resolution | 24 bits |
| Maximum sample rate per channel | 50 kS/s/channel |
| Sampling mode | Simultaneous |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular I/O platform
Differential voltage input module
Consult NI's C Series compatibility table for CompactDAQ and CompactRIO system selection.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. It supports simultaneous acquisition at up to 50 kS/s per channel with 24-bit resolution.
The supplied information conflicts. NI identifies 780180-01 as the BNC version, while the legacy description specifies screw terminals. The exact variant needs confirmation from the module label and connectors.
No. Measurement range and isolation limits are separate specifications. Consult the datasheet safety section for the identified connector variant.
