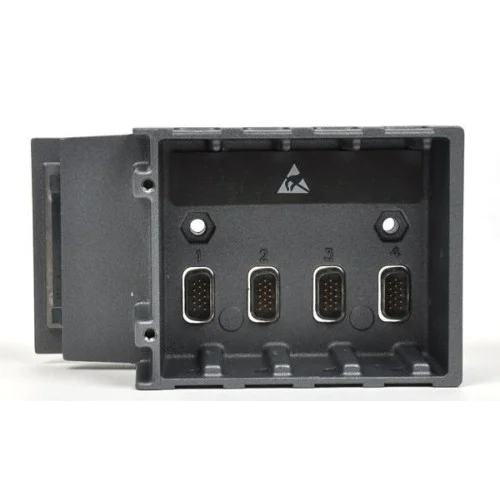

The NI cRIO-9111 is a four-slot CompactRIO chassis with a Virtex-5 LX30 FPGA for C Series I/O. It requires a compatible CompactRIO controller.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This chassis provides reconfigurable I/O for distributed control and monitoring. Scan Mode supports real-time system expansion, while FPGA programming enables inline processing and high-speed I/O control.
Verified product specifications.
| Slot count | 4 slots |
|---|---|
| FPGA type | Virtex-5 LX30 |
| FPGA flip-flops | 19200 |
| 6-input LUTs | 19200 |
| DSP48 slices | 32 |
| Embedded block RAM | 1152 kbits |
| Operating temperature | -40 to 70; thermally conductive mounting required at 56 to 70 °C |
| Storage temperature | -40 to 85 °C |
| Ingress protection | IP40 |
| Operating humidity | 10 to 90, noncondensing % RH |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular control platform
FPGA chassis
Requires a compatible CompactRIO controller.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is an FPGA chassis requiring a compatible CompactRIO controller.
Allow 25.4 mm above and below for airflow. At ambient temperatures from 56 to 70 °C, mount on thermally conductive material.
