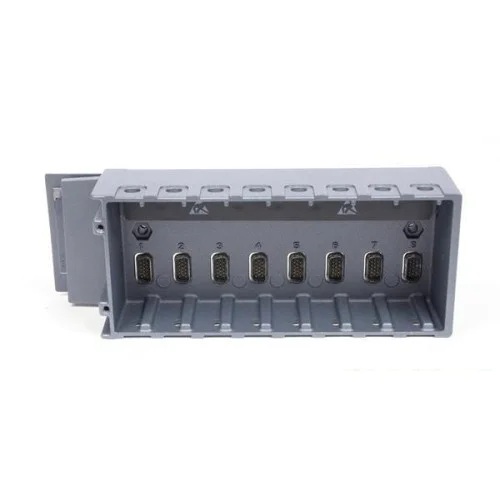

National Instruments cRIO-9112 Reconfigurable FPGA chassis
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9112

The NI cRIO-9112 is an eight-slot CompactRIO chassis with a Virtex-5 LX30 FPGA for C Series I/O. It requires a compatible, separate CompactRIO controller.

ManufacturerNational Instruments
ModelcRIO-9112
Part Number780916-01
Product TypeReconfigurable FPGA chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9112

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO
I/O slots8 C Series slots
FPGAVirtex-5 LX30
Operating temperature-40 to 70 °C; mounting restrictions apply
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9112 provides the reconfigurable I/O chassis in a modular CompactRIO system. C Series modules supply the application-specific I/O, while a separate compatible controller communicates with the installed modules.

NI supports Scan Mode for system expansion and FPGA programming for inline processing and high-speed I/O control.

  • Eight module slots accommodate C Series I/O.
  • Onboard Virtex-5 LX30 FPGA provides reconfigurable processing.
  • Supports panel mounting and optional DIN rail mounting.
  • Configurable FPGA bitstream autoload behavior and low-power sleep mode.
Verified specifications

Technical data

Verified product specifications.

Module slots8 slots
FPGA typeVirtex-5 LX30
FPGA flip-flops19200
6-input LUTs19200
DSP48 slices32
Embedded block RAM1152 kbits
Operating temperature-40 to 70; thermally conductive mounting required from 56 to 70 °C °C
Storage temperature-40 to 85 °C
WeightApproximately 880 g
Ingress protectionIP40
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded I/O platform

cRIO-9112

Eight-slot FPGA chassis

Controller

Requires a separate compatible CompactRIO controller.

Confirm controller, module, and software support before configuring a system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9112 Product PageProduct Page · ni.com
Open →
NI cRIO-9111/9112/9113/9114/9116/9118 User Manual and SpecificationsUser Manual And Specifications · docs-be.ni.com
Open →
cRIO-9112 Product CertificationsCertification Reference · ni.com
Open →
Measurement Accuracy in High-Power CompactRIO SystemsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9111View product →
Related model
CRIO-9114View product →
Related model
CRIO-9116View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9112 a controller or an I/O module?

Neither: it is an eight-slot FPGA chassis that requires a compatible CompactRIO controller and C Series I/O modules.

What mounting precautions apply at higher temperatures?

At ambient temperatures from 56 to 70 °C, NI requires mounting on thermally conductive material.
