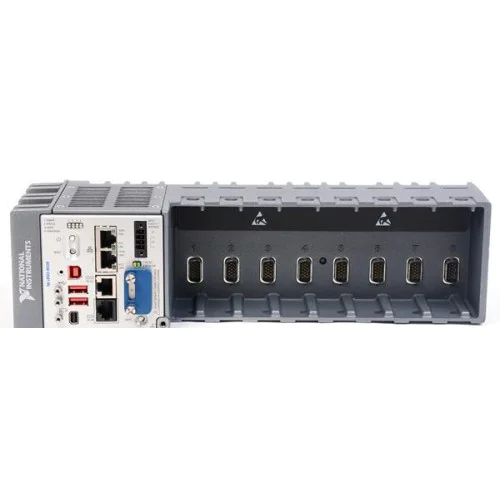

National Instruments CRIO-9038 Embedded controller with integrated 8-slot chassis
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9038

The NI cRIO-9038 is an 8-slot CompactRIO embedded controller combining a real-time processor and reconfigurable FPGA for control and monitoring applications.

ManufacturerNational Instruments
ModelCRIO-9038
Part Number783850-01 · 783850-02
Product TypeEmbedded controller with integrated 8-slot chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9038

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Platform8-slot CompactRIO
Processor1.33 GHz dual-core Intel Atom
FPGAKintex-7 160T
Memory and storage2 GB RAM; 8 GB storage
Operating systemNI Linux Real-Time, 64-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9038 integrates the processor, FPGA, and eight I/O slots in a fanless CompactRIO controller. It belongs to NI's cRIO-903x controller family.

Embedded user-interface capability and Mini DisplayPort support a local human-machine interface. Ethernet, USB, and removable SD storage provide additional connectivity.

  • Dual-core processor and reconfigurable Kintex-7 FPGA.
  • Eight integrated I/O slots.
  • Two tri-speed Gigabit Ethernet ports.
  • Two USB host ports and one USB device port.
Verified specifications

Technical data

Verified product specifications.

CPUIntel Atom E3825, dual-core
CPU frequency1.33 GHz
RAM2 GB DDR3L
Internal storage8 GB
FPGAXilinx Kintex-7 7K160T
I/O slots8
Operating systemNI Linux Real-Time, 64-bit
Ethernet2 ports; 10/100/1000 Mbps
Serial interfacesRS-232 and RS-485/422
Power input range9 to 30 VDC
Maximum power consumption46; fully populated system under specified high-stress conditions W
Operating temperature-40 to 70; mounting-dependent derating applies °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9038

Integrated real-time controller and 8-slot chassis

FPGA programming

LabVIEW FPGA Module is required to program the user-accessible FPGA; it is not required for Scan Interface mode.

Check the exact part number, I/O module requirements, software support, and mounting instructions before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9038 Product PageProduct Page · ni.com
Open →
NI cRIO-9038 SpecificationsSpecifications PDF · download.ni.com
Open →
CompactRIO Controllers Product FlyerPlatform Comparison PDF · ni.com
Open →
CompactRIO USB Configuration Cable CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9068View product →
Related model
CRIO-9063View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9038 a CompactDAQ I/O module?

No. NI identifies it as an 8-slot CompactRIO embedded controller, not a standalone I/O module.

Does the cRIO-9038 use an Intel Core i7 processor?

No. It uses a 1.33 GHz dual-core Intel Atom E3825 processor.

Can it support a local operator display?

Yes. NI documents Mini DisplayPort and embedded user-interface capability for a local HMI.
