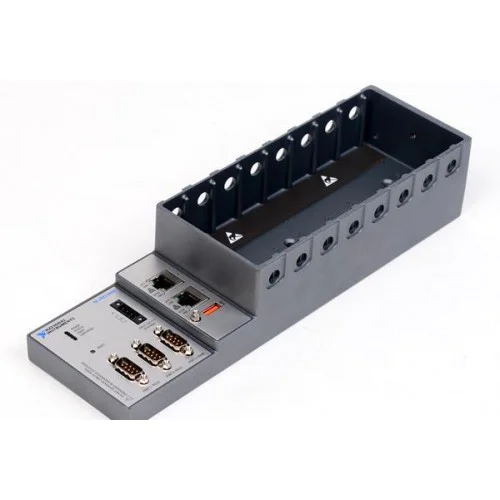

National Instruments cRIO-9068 Integrated embedded real-time controller and 8-slot chassis
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9068

The NI cRIO-9068 combines an embedded real-time controller, reconfigurable FPGA and eight-slot CompactRIO chassis for control and monitoring systems.

ManufacturerNational Instruments
ModelcRIO-9068
Part Number782663-01 · 782663-02
Product TypeIntegrated embedded real-time controller and 8-slot chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9068

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Processor667 MHz dual-core ARM Cortex-A9
I/O slots8 C Series module slots
Memory512 MB DRAM; 1 GB nonvolatile storage
FPGAXilinx Zynq 7020
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9068 belongs to the CompactRIO platform, not CompactDAQ. It integrates the controller and module chassis in one unit and runs NI Linux Real-Time.

C Series modules provide the system's I/O. The getting started guide covers module installation, host software, grounding, external power and network setup.

  • Fanless embedded controller for control and monitoring.
  • Reconfigurable FPGA with 16 DMA channels and 32 logical interrupts.
  • Two Ethernet ports and one USB host port.
  • Two RS-232 ports and one RS-485 port.
Verified specifications

Technical data

Verified product specifications.

ProcessorDual-core ARM Cortex-A9, 667 MHz
Slot count8 slots
Operating systemNI Linux Real-Time
DRAM512 MB
Nonvolatile memory1 GB
FPGAXilinx Zynq 7020
Ethernet interface speeds10 / 100 / 1000 Mbps
Input voltage9 to 30 V
Maximum power consumption25; fully populated system under the specified maximum-load conditions W
Operating temperature-40 to 70; mounting requirements apply °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and I/O platform

cRIO-9068

Integrated controller and chassis

I/O ecosystem

C Series modules

Check module-specific support and follow NI mounting requirements; mounting can affect temperature limits.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9068 Product PageProduct Page · ni.com
Open →
NI cRIO-9068 SpecificationsSpecifications · download.ni.com
Open →
NI cRIO-9068 Getting Started GuideGetting Started Guide · download.ni.com
Open →
Understanding CompactDAQ and CompactRIO SpecificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9068 an individual I/O module?

No. It is an integrated CompactRIO controller and eight-slot chassis for C Series modules.

Does it use an Intel Core i7 processor?

No. The cRIO-9068 uses a 667 MHz dual-core ARM Cortex-A9 processor.

Is LabVIEW FPGA required for every operating mode?

The getting started guide states that LabVIEW FPGA is required to program the user-accessible FPGA, but is not required for Scan Interface mode.
