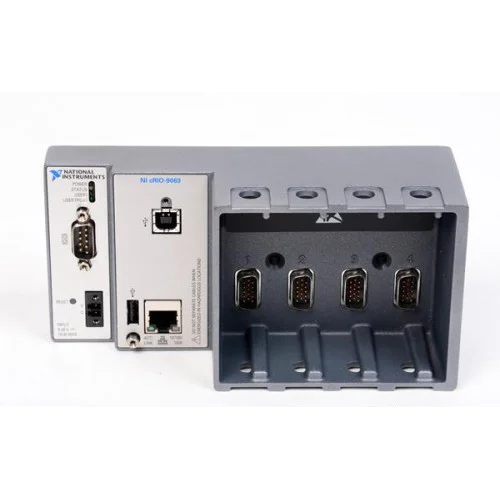

National Instruments cRIO-9063 Embedded real-time controller with integrated 4-slot chassis and reconfigurable FPGA
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9063

The NI cRIO-9063 is a fanless, four-slot CompactRIO embedded controller for control and monitoring applications. It combines a real-time processor, reconfigurable FPGA and modular C Series I/O architecture.

ManufacturerNational Instruments
ModelcRIO-9063
Part Number783830-01
Product TypeEmbedded real-time controller with integrated 4-slot chassis and reconfigurable FPGA
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9063

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
I/O slots4
Processor667 MHz dual-core ARM Cortex-A9
Memory256 MB DRAM; 512 MB nonvolatile storage
FPGAZynq-7020
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9063 belongs to the CompactRIO platform, not CompactDAQ. Its integrated controller and four-slot chassis provide a real-time processing and FPGA platform for C Series modules.

NI Linux Real-Time runs on the ARM processor. The controller supports Scan Interface operation as well as user FPGA programming; LabVIEW FPGA Module is required to program the user-accessible FPGA but is not required for Scan Interface mode.

  • Fanless embedded design for advanced control and monitoring.
  • Integrated Zynq-7020 FPGA alongside dual-core ARM processing.
  • One Gigabit Ethernet port, one USB host port, one USB device port and one RS-232 port.
Verified specifications

Technical data

Verified product specifications.

C Series slot count4 slots
Processor architectureDual-core ARM Cortex-A9
Processor frequency667 MHz
DRAM256 MB
Nonvolatile memory512 MB
FPGA / SoCXilinx Zynq-7000 XC7Z020
Operating systemNI Linux Real-Time (32-bit)
Ethernet interfaceOne port; 10BASE-T / 100BASE-T / 1000BASE-T
USB interfacesUSB 2.0 Hi-Speed host (Type A) and device (Type B)
Input voltage9 to 30 VDC
Maximum power input18 with four C Series modules; 14 without modules W
Operating temperature-20 to 55; mounting-related derating may apply °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9063

Integrated four-slot controller

I/O ecosystem

C Series modules

Confirm module support and software-version compatibility before configuring the system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9063 SpecificationsSpecifications · download.ni.com
Open →
NI cRIO-9063 Product PageProduct Page · ni.com
Open →
NI CompactRIO Controller Comparison FlyerTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9068View product →
Related model
CRIO-9038View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9063 a CompactDAQ I/O module?

No. It is a CompactRIO embedded controller with an integrated four-slot chassis and FPGA.

Does the cRIO-9063 use an Intel Core i7 processor?

No. It uses a 667 MHz dual-core ARM Cortex-A9 processor.

Is LabVIEW FPGA Module required for Scan Interface mode?

No. NI specifies that LabVIEW FPGA Module is not required for Scan Interface mode, but it is required to program the user-accessible FPGA.
