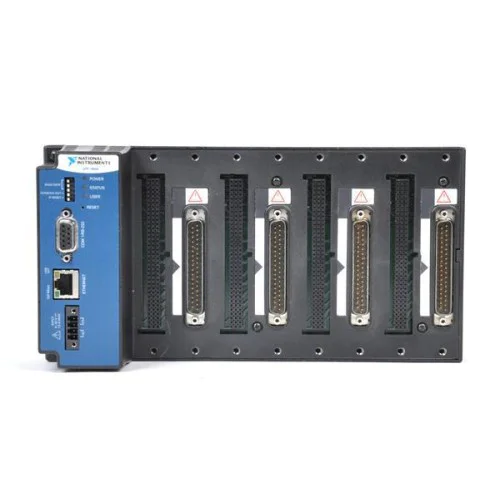

CFP-1804

The National Instruments CFP-1804 is a four-slot Ethernet/serial interface for Compact FieldPoint systems. The cFP-180x family supports Ethernet and RS-232 communication, including Modbus TCP over Ethernet and Modbus ASCII or RTU over serial.

ManufacturerNational Instruments

ModelCFP-1804

Part Number779490-01

Product Type4-slot Ethernet/serial interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-1804

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformCompact FieldPoint

I/O module positions4

Communication interfacesEthernet and RS-232

Modbus protocolsTCP, ASCII, and RTU

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The CFP-1804 provides a four-slot Ethernet/serial interface within the Compact FieldPoint platform. NI identifies it separately from the eight-slot cFP-1808, making slot capacity an important distinction when selecting equipment for an existing system.

NI documents Ethernet, RS-232, or simultaneous use of both interfaces for the cFP-180x family. Ethernet communication supports Modbus TCP, while serial communication supports Modbus ASCII and Modbus RTU.

Four-slot configuration for Compact FieldPoint I/O.
Ethernet and RS-232 communication interfaces.
Modbus TCP communication over Ethernet.
Modbus ASCII and Modbus RTU communication over serial.
cFP-180x backplane mounting support for cFP-CB-1, cFP-CB-2, and cFP-CB-3 connector blocks.

Verified specifications

Technical data

Verified product specifications.

Product type	Ethernet/serial interface
Slot count	4 slots
Communication interfaces	Ethernet; RS-232
Ethernet Modbus protocol	Modbus TCP
Serial Modbus protocols	Modbus ASCII; Modbus RTU

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular I/O platform

CFP-1804

Four-slot Ethernet/serial interface

Connector blocks

NI documents cFP-CB-x connector-block mounting on cFP-180x backplanes.

Confirm the selected I/O module and connector-block requirements before assembly; connector-block selection depends on the signal and wiring application.
