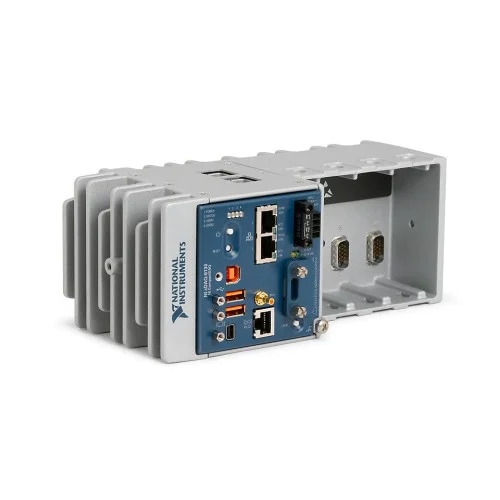

National Instruments cDAQ-9136 Four-slot embedded data acquisition controller

1 image: Click to enlarge

National Instruments · CompactDAQ

cDAQ-9136

The NI cDAQ-9136 is a four-slot CompactDAQ controller with an integrated quad-core processor. It combines embedded computing with C Series I/O modules for configurable data acquisition.

ManufacturerNational Instruments

ModelcDAQ-9136

Product TypeFour-slot embedded data acquisition controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cDAQ-9136

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Module slots4 C Series slots

Processor1.91 GHz quad-core Intel Atom E3845

NetworkTwo 10/100/1000BASE-T Ethernet ports

Operating temperature-20 to 55 °C, subject to mounting requirements

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cDAQ-9136 is a controller, not an individual I/O module. Its integrated processor and four module slots form the computing and acquisition core of a CompactDAQ system.

C Series modules provide application-specific I/O and signal conditioning. NI documents separate Windows and LabVIEW Real-Time controller configurations; confirm the unit's operating-system variant before planning software installation or deployment.

Integrated quad-core processor for embedded acquisition applications.
Four C Series slots for configurable measurement I/O.
Dual RJ-45 Ethernet interfaces with automatic crossover configuration.
Panel, DIN rail, and desktop mounting options using model-appropriate accessories.

Verified specifications

Technical data

Verified product specifications.

C Series module slots	4 slots
CPU	Intel Atom E3845, quad-core
CPU frequency	1.91 GHz
System memory	2 GB DDR3L
Internal SSD	32 GB
Ethernet	2 RJ-45 ports; 10/100/1000 Mbit/s
Power input	9 to 30 V DC
Maximum power consumption	40 W
Operating temperature	-20 to 55; mounting-related derating may apply °C
Unloaded dimensions	219.5 × 88.1 × 118.6 mm
Unloaded weight	1.85 kg
Ingress protection	IP30; indoor use only

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Modular data acquisition platform

cDAQ-9136

Embedded four-slot controller

Software configuration

NI provides separate installation instructions for Windows and LabVIEW Real-Time variants.

Confirm the controller's OS variant, module support, and mounting requirements before system integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cDAQ-9136 SpecificationsSpecifications · download.ni.com

Open →

NI cDAQ-9132/9133/9134/9135/9136/9137 User ManualUser Manual · docs-be.ni.com

Open →

cDAQ-9136 Product CertificationsCertification Reference · ni.com

Open →

CompactDAQ Controller and Chassis Mounting AccessoriesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cDAQ-9136 an I/O module or a controller?

It is a four-slot CompactDAQ controller with an integrated processor. Measurement I/O is provided by installed C Series modules.

Does the cDAQ-9136 have a fixed analog resolution or channel count?

No single controller-wide analog resolution or channel count describes every configuration. Consult the specifications of the installed C Series modules; NI explicitly identifies supported analog input channel count and maximum sample rate as module-dependent.

Can the USB device port be used on every OS variant?

No. NI documents the USB device port for configuration, deployment, debugging, and maintenance on LabVIEW Real-Time variants. It is not supported on the Windows variants.
