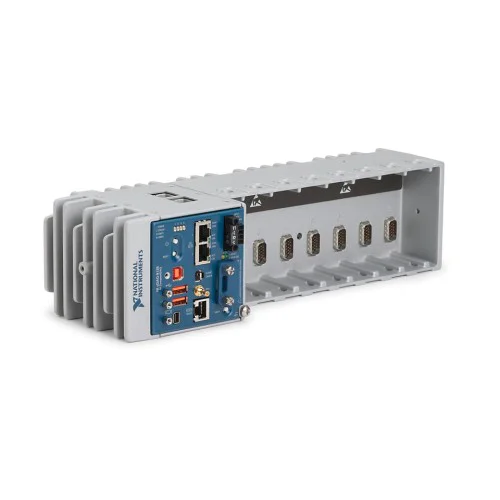

National Instruments cDAQ-9135 Eight-slot embedded data acquisition controller

1 image: Click to enlarge

National Instruments · CompactDAQ

cDAQ-9135

The NI cDAQ-9135 is an eight-slot CompactDAQ controller with an integrated computer for standalone C Series data acquisition. Windows Embedded Standard 7 and NI Linux Real-Time variants require different configuration workflows.

ManufacturerNational Instruments

ModelcDAQ-9135

Product TypeEight-slot embedded data acquisition controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cDAQ-9135

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Module capacity8 C Series slots

ProcessorDual-core Intel Atom E3825, 1.33 GHz

Memory2 GB DDR3L RAM; 32 GB SSD

Ethernet2 auto-negotiating 10/100/1000 Mbps ports

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cDAQ-9135 combines a CompactDAQ module chassis and embedded controller. Its built-in computer runs acquisition code without requiring a separate PC as the runtime host, and the cDAQ-913x family supports NI-DAQmx.

Configuration depends on the operating-system variant. Windows Embedded controllers are configured on the controller itself, using local peripherals or remote desktop, rather than appearing as remote systems in NI MAX on another computer.

Integrated computer supports standalone acquisition code execution.
NI-DAQmx support within the cDAQ-913x controller family.
SD/SDHC expansion, USB 2.0 host and device ports, and mini DisplayPort.

Verified specifications

Technical data

Verified product specifications.

Slot count	8 slots
CPU	Intel Atom E3825, 2 cores
CPU frequency	1.33 GHz
System memory	2 GB DDR3L
SSD capacity	32 GB
DC input	9–30 VDC
Maximum power consumption	46; fully populated, maximum-load conditions W
Operating temperature	-40 to 70; requires horizontal mounting to a metal panel or surface °C
Unloaded dimensions	328.8 × 88.1 × 118.6 mm
Unloaded weight	2.5 kg

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Modular data acquisition platform

cDAQ-9135

Embedded controller with eight module slots

Operating-system identification

NI identifies Windows and Real-Time versions by distinct part numbers. Confirm the unit's version before planning software deployment.

Confirm the installed OS and module-specific driver support before configuring the system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cDAQ-9135 SpecificationsSpecifications · download.ni.com

Open →

NI cDAQ-9132/9133/9134/9135/9136/9137 User ManualUser Manual · docs-be.ni.com

Open →

Windows CompactDAQ Controller Configuration in NI MAXTechnical resource

Open →

CompactDAQ Controller I/O Expansion GuidanceTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cDAQ-9135 an I/O module or a controller?

It is a CompactDAQ controller with an integrated computer. C Series I/O modules provide the measurement interfaces.

Does it need a separate PC to run acquisition code?

No. The cDAQ-913x family has built-in controllers that can run code without a separate PC as the runtime host.

Why might a Windows cDAQ-9135 not appear under remote systems in NI MAX?

Windows Embedded controllers are configured on the controller itself. NI describes using a monitor, keyboard and mouse, or remote desktop, to access them.

Are channel count and analog input sample rate fixed?

No. These depend on the installed C Series modules.
