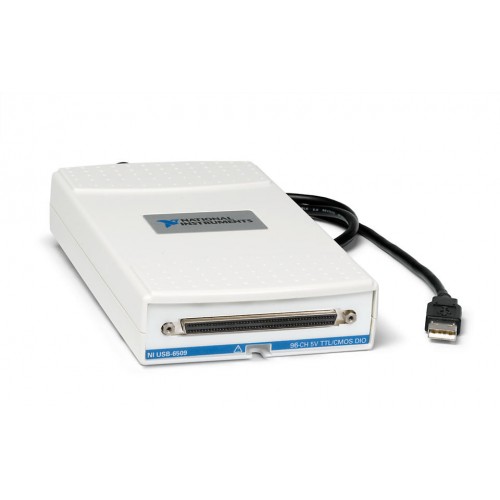

National Instruments USB-6509 USB Digital I/O Device

1 image: Click to enlarge

National Instruments · Computer-Based Device

USB-6509

Name: USB-6509
Brand: National Instruments

The NI USB-6509 is a bus-powered USB digital I/O device with 96 channels and 5 V TTL/CMOS logic. It provides programmable power-up states, digital input filtering and a watchdog function.

ManufacturerNational Instruments

ModelUSB-6509

Part Number779975-01

Product TypeUSB Digital I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6509

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital channels96 bidirectional lines

Direction configuration12 ports of 8 lines; input/output direction selected per port

Logic5 V TTL/CMOS

Output drive24 mA per line, subject to aggregate current limits

I/O connector100-pin female 0.050 series SCSI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6509 connects external digital devices to a computer over USB 2.0. Its outputs can drive suitable solid-state relays, while programmable startup states and watchdog behavior help manage output states during startup and application faults.

Channel count does not imply independent direction selection for every line: each eight-line port must be configured as input or output. Plan signal assignments at the port level.

96 digital I/O lines arranged in twelve eight-line ports.
Software-configurable power-up states.
Programmable input filtering for switch debouncing and glitch suppression.
Watchdog-controlled output states for computer or application faults.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	779975-01
Bus interface	USB 2.0 Hi-Speed or full-speed
Bidirectional digital channels	96 channels
Direction control	Port-by-port; 12 ports with 8 lines each
Digital logic compatibility	5 V TTL/CMOS
Per-line output drive	24; subject to port and device current limits mA
Maximum total sinking or sourcing current per port	100 mA
Maximum simultaneous total DO sourcing current, bus-powered	215 mA
Optional external DC supply input	12 ±20% VDC
I/O connector	100-pin female 0.050 series SCSI
Dimensions	17.78 × 10.30 × 3.34 cm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB 2.0

Computer interface

USB-6509

96-channel digital I/O device

Signal connection

100-pin SCSI I/O connector

Check port direction assignments and aggregate current limits before connecting loads.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6509 Official Product PageProduct Page · ni.com

Open →

NI USB-6509 User Guide and SpecificationsUser Guide And Specifications · docs-be.ni.com

Open →

USB-6509 Configuring the Power-Up StatesConfiguration Instructions · ni.com

Open →

NI 6509 Port-Level Direction ConfigurationTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can individual lines within one port use different directions?

No. The USB-6509 requires direction configuration per eight-line port, rather than independently for each line.

Does the USB-6509 require an external power supply?

It supports USB bus power. NI documents an optional external 12 VDC supply when additional sourcing capacity is required; port current limits still apply.

How are startup output states configured?

NI provides a Power-up States configuration dialog in MAX. Its instructions specify Hardware Configuration Utility for Linux.
