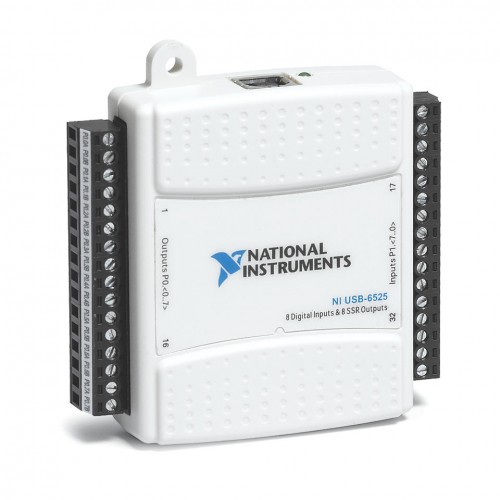

National Instruments USB-6525 Isolated digital I/O device with solid-state relay outputs
1 image: Click to enlarge
National Instruments · Computer-based USB data acquisition

USB-6525

The NI USB-6525 is a bus-powered USB digital I/O device with eight isolated inputs and eight solid-state relay outputs. It supports industrial digital sensor monitoring and actuator switching within its specified electrical limits.

ManufacturerNational Instruments
ModelUSB-6525
Part Number779640-01
Product TypeIsolated digital I/O device with solid-state relay outputs
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6525

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital inputs8 channel-to-channel isolated inputs
Digital outputs8 isolated solid-state relays
Input range-60 to +60 VDC
Relay switching limits60 VDC or 30 Vrms; 500 mA maximum per channel
ConnectionUSB 2.0; screw-terminal signal connections
