USB-6289 OEM

Name: USB-6289 OEM
Brand: National Instruments

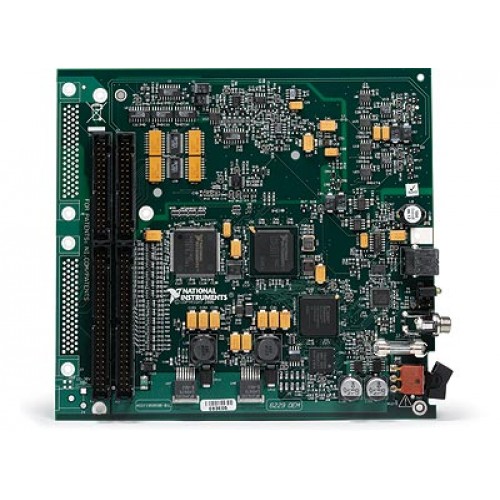

The NI USB-6289 OEM is an M Series USB multifunction DAQ device with 18-bit analog input, four analog outputs, 48 digital I/O lines, and two counters/timers. The OEM version provides IDC signal connections.

ManufacturerNational Instruments

ModelUSB-6289 OEM

Part Number197596-01

Product TypeOEM multifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6289 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs32 single-ended or 16 differential; 18-bit

AI sampling625 kS/s single channel; 500 kS/s multichannel aggregate

Analog outputs4 channels; 16-bit

Digital I/O48 lines; 32 support waveform I/O

OEM connectionsTwo 34-pin IDC and two 50-pin IDC connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6289 OEM combines analog acquisition, analog generation, correlated digital I/O, and counter/timer functions on a USB-connected M Series device.

Use the OEM user guide for connector pinouts, dimensions, switch and LED information, and chassis-ground details. NI provides separate dimensional drawings for part number 197596-01.

18-bit analog acquisition with single-ended and differential input configurations.
Analog and digital triggering for measurement coordination.
Two 32-bit counters/timers.
OEM-specific documentation covers signal connections and mechanical integration.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	32 single-ended or 16 differential channels
ADC resolution	18 bit
Maximum single-channel AI sample rate	625 kS/s
Maximum multichannel AI sample rate	500 aggregate kS/s
Analog outputs	4 channels
DAC resolution	16 bit
Maximum AO update rates	1 channel: 2.86; 2 channels: 2.00 per channel; 3 channels: 1.54 per channel; 4 channels: 1.25 per channel MS/s
Digital I/O	48 total; waveform I/O on 32 Port 0 lines lines
Counters/timers	2, each 32-bit
OEM I/O connectors	2 × 34-pin IDC; 2 × 50-pin IDC
