National Instruments · USB

USB-6281 OEM

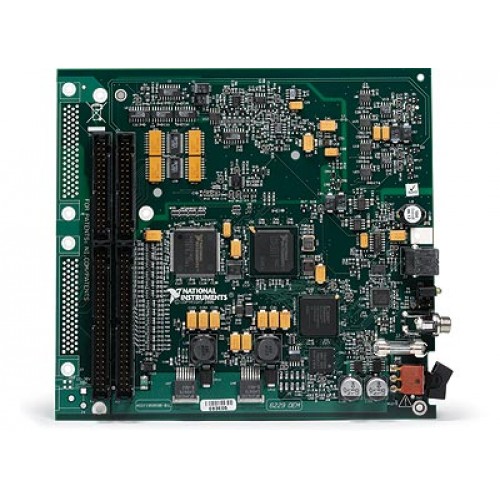

The NI USB-6281 OEM is a board-level M Series USB data acquisition device with 18-bit analog input, two analog outputs and 24 digital I/O lines. Part 197596-03 is the unenclosed OEM version for system integration.

ManufacturerNational Instruments

ModelUSB-6281 OEM

Part Number197596-03

Product TypeOEM multifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6281 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential; 18-bit resolution

Maximum input sampling625 kS/s single channel; 500 kS/s multichannel aggregate

Analog outputs2 channels

Digital I/O24 bidirectional lines

Counters/timersTwo 32-bit counters/timers

ConstructionUnenclosed OEM board; USB 2.0 interface

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6281 OEM combines analog acquisition, analog output, digital I/O and counter/timer functions in an unenclosed USB device. NI identifies part 197596-03 as the M Series OEM configuration, distinct from the enclosed screw-terminal and mass-termination configurations.

Analog inputs support 16 single-ended or 8 differential channels with selectable bipolar voltage ranges. The maximum acquisition rate is 625 kS/s for one channel or 500 kS/s shared across multiple channels; these are not per-channel simultaneous sampling rates.

18-bit analog-to-digital conversion with selectable input ranges from ±0.1 V to ±10 V.
Two analog output channels alongside 24 bidirectional digital I/O lines.
Correlated digital I/O, analog and digital triggering, and two 32-bit counters/timers.
USB Signal Stream data transfers for analog acquisition.
OEM configuration uses two generic signal connectors rather than the enclosed variants' terminal arrangements.

Verified specifications

Technical data

Verified product specifications.

Host interface	USB 2.0
Analog input channels	16 single-ended or 8 differential
Analog input resolution	18 bit
Maximum single-channel input sample rate	625 kS/s
Maximum multichannel aggregate input sample rate	500 kS/s
Analog input ranges	±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Analog output channels	2 channels
Digital I/O	24 bidirectional lines
Counters/timers	2 counters/timers, 32-bit
Enclosure	Unenclosed OEM configuration

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB 2.0 / M Series

Host interface and DAQ family

USB-6281 OEM

Unenclosed multifunction DAQ device, part 197596-03

Mechanical integration

NI provides dimensional drawings and CAD resources specifically indexed to part 197596-03.

Use the 197596-03 OEM drawings when planning mounting and wiring; do not substitute enclosed-version connector layouts.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6281 Product Page and OEM ConfigurationProduct Page · ni.com

Open →

PCI/PXI/USB-6281 SpecificationsSpecifications · ni.com

Open →

USB-6281 Dimensional Drawings — Includes 197596-03Dimensional Drawings And CAD · ni.com

Open →

OEM Part 197596-03 Mechanical Drawings and CAD ResourcesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the USB-6281 OEM configuration?

NI lists 197596-03 as the USB-6281 M Series OEM configuration. This is the unenclosed version with generic OEM signal connections.

Does 625 kS/s apply to every analog input channel?

No. The maximum is 625 kS/s for single-channel acquisition. Multichannel acquisition has a maximum aggregate rate of 500 kS/s shared across the channels being scanned.

Where can I find mechanical information for the OEM board?

NI's USB-6281 dimensional drawings page includes separate PDF, DXF and 3D CAD entries for part 197596-03.
