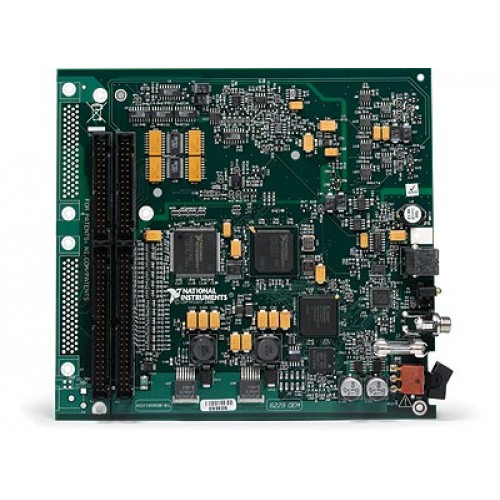

National Instruments USB-6251 OEM Board-only multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6251 OEM

The NI USB-6251 OEM is a board-only M Series multifunction USB DAQ for embedded-system integration. It combines 16-bit analog input, two analog outputs, 24 digital I/O lines and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelUSB-6251 OEM
Part Number194929-03
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6251 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
FormatOEM board-only device; no enclosure
Analog inputs16 single-ended or 8 differential, 16-bit
Maximum AI sampling1.25 MS/s single channel; 1 MS/s multichannel aggregate
Analog outputs2 channels, 16-bit
Digital I/O24 lines
Counters/timers2 counters, 32-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Part 194929-03 identifies the USB-6251 OEM board-only version. NI lists this format for embedded systems and OEM integration, distinct from the enclosed USB-6251 variants.

Its multifunction architecture combines voltage acquisition, analog output, digital I/O and counter/timer functions. Single-channel and multichannel acquisition have different maximum rates, so the aggregate sampling limit should be considered when configuring several inputs.

  • Board-only OEM construction for embedded-system integration.
  • 16-bit analog acquisition with single-ended or differential input configurations.
  • Two 16-bit analog output channels.
  • 24 digital I/O lines and two 32-bit counters/timers.
Verified specifications

Technical data

Verified product specifications.

Manufacturer part number194929-03
Mechanical formatOEM board-only, no enclosure
Analog input configuration16 single-ended or 8 differential channels
ADC resolution16 bit
Maximum single-channel AI sampling rate1.25 MS/s
Maximum multichannel aggregate AI sampling rate1.00 MS/s
Analog output channels2 channels
DAC resolution16 bit
Maximum AO update rate, one channel2.86 MS/s
Maximum AO update rate, two channels2.00 MS/s
Digital I/O24 lines
Counter/timer count2
Counter/timer resolution32 bit
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series USB DAQ

Product family and host interface

USB-6251 OEM

Board-only multifunction DAQ

Integration resources

NI provides dimensional drawings and 3D CAD entries specifically for part 194929-03.

Use OEM-specific wiring documentation; NI's general 62xx cable/accessory guide explicitly excludes USB OEM models.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6251 Product Page and OEM Part IdentificationProduct Page · ni.com
Open →
High-Speed M Series Multifunction DAQ DatasheetDatasheet · ni.com
Open →
USB-6251 Dimensional Drawings and CAD ModelsMechanical Drawings · ni.com
Open →
OEM Mechanical Drawings and CAD Files for 194929-03Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6259 OEMView product →
Related model
NI USB-6251 BNCView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does OEM mean for this USB-6251?

NI identifies part 194929-03 as the USB-6251 OEM board-only kit without an enclosure, intended for embedded-system integration.

Can all analog inputs sample at 1.25 MS/s each?

No. The maximum is 1.25 MS/s for a single channel and 1 MS/s aggregate for multichannel acquisition.

Where can I find mechanical integration files?

NI's USB-6251 dimensional-drawings page lists 2D drawings and 3D CAD files for OEM part 194929-03.
