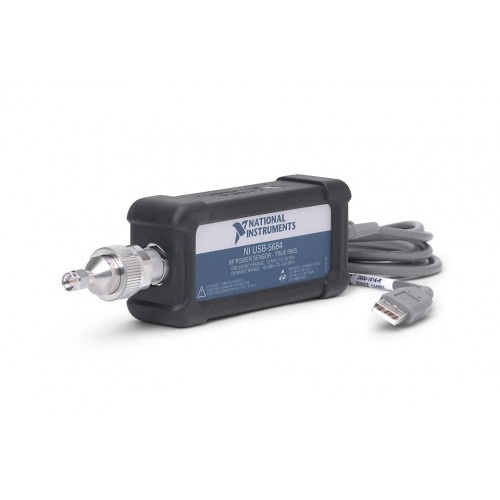

USB-5684
1 image: Click to enlarge
NI (National Instruments) · USB 2.0

USB-5684

The NI USB-5684 is a USB 2.0 true RMS RF power sensor covering 10 MHz to 18 GHz with a power measurement range of -60 dBm to +20 dBm.

ManufacturerNI (National Instruments)
ModelUSB-5684
Part Number783986-01
Product Type18 GHz, -60 dBm to +20 dBm Power Range RF Power Sensor Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-5684

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
RF Power Meter Maximum Frequency18 GHz
RF Power Meter Minimum Frequency10 MHz
Dynamic Range-60 dBm to 20 dBm
Measurement Speed10000 S/s
Typical Linearity±0.11 dB
Analog Input Channels1
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-5684 measures average RF power across a 10 MHz to 18 GHz frequency range. Its single measurement channel provides a -60 dBm to +20 dBm dynamic range, a measurement speed of 10,000 S/s and typical linearity of ±0.11 dB.

True RMS measurement supports single-tone, multitone, wideband and complex digital waveforms. The sensor supports external hardware triggering and signal-based software triggering; scope and slot modes provide software-triggered measurements of burst and multislot waveforms.

  • RF frequency coverage from 10 MHz to 18 GHz.
  • True RMS average power measurement for single-tone, multitone, wideband and complex digital signals.
  • Power measurement range of -60 dBm to +20 dBm.
  • Measurement speed of 10,000 S/s with typical linearity of ±0.11 dB.
  • USB 2.0 connection and one analog input channel.
  • External hardware triggering and signal-based software triggering, including scope and slot measurement modes.
Verified specifications

Technical data

Verified product specifications.

RF Power Meter Maximum Frequency18 GHz
RF Power Meter Minimum Frequency10 MHz
Dynamic Range-60 dBm to 20 dBm
Measurement Speed10000 S/s
Typical Linearity±0.11 dB
Number of Analog Input Channels1
Bus ConnectionUSB 2.0
NI part numbers783986-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connection

USB-5684

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-5680View product →
Related model
USB-5683View product →

Explore equipment

Wireless Design and Test

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What frequency range does the USB-5684 measure?

The USB-5684 covers 10 MHz to 18 GHz.

What is the USB-5684 power measurement range?

Its dynamic range is -60 dBm to +20 dBm.

How can the USB-5684 be triggered?

It supports hardware triggering from an external trigger source and software triggering based on the signal source.

What types of signals can the USB-5684 measure?

Its true RMS measurement supports average power measurements of single-tone, multitone, wideband and complex digital waveforms.
