NINI (National Instruments)

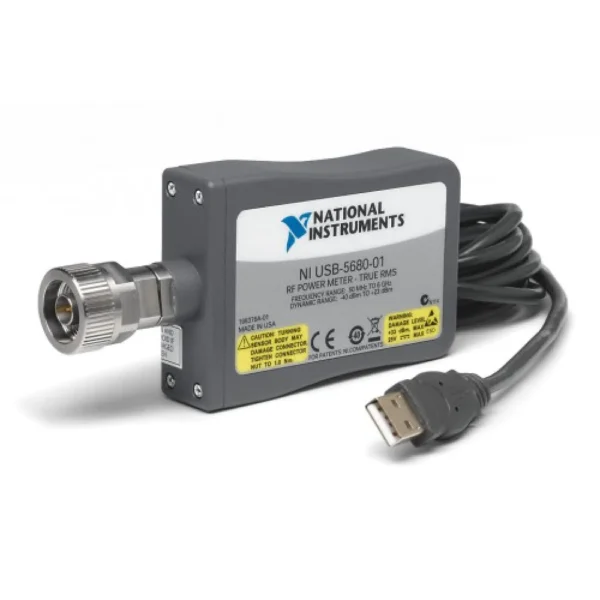

USB-5680
6 GHz, -40 dBm to +23 dBm Power Range RF Power Sensor Device
The NI USB-5680 is a true RMS RF power sensor device with a 6 GHz maximum frequency, a -40 dBm to 23 dBm dynamic range, and USB 2.0 connectivity.
We'll review your request and reply personally.
- RF Power Meter Maximum Frequency6 GHz
- RF Power Meter Minimum Frequency50 MHz
- Dynamic Range-40 dBm to 23 dBm
- Measurement Speed15 S/s
- Typical Linearity±0.13 dB
- Bus ConnectionUSB 2.0
Overview
The USB-5680 measures continuous wave signal power and path loss in automated test applications as a true RMS power meter.
The device has a 50 MHz minimum frequency, a 6 GHz maximum frequency, and a measurement speed of 15 S/s. Its design is suitable for mobile applications and automated test applications where rack space is limited.
Key Features
- RF power measurement from 50 MHz to 6 GHz.
- Dynamic range of -40 dBm to 23 dBm.
- Typical linearity of ±0.13 dB.
- Measurement speed of 15 S/s.
- USB 2.0 bus connection.
- True RMS power meter for continuous wave signal power and path loss measurements.
Key Specifications
Specifications as published by NI for the USB-5680.
Platform & Ecosystem
- NIManufacturer
- USB 2.0Bus Connection
- USB-5680This product
Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Frequently Asked Questions
What is the maximum frequency of the USB-5680?
The maximum frequency is 6 GHz.
What is the dynamic range?
The dynamic range is -40 dBm to 23 dBm.
What bus connection does it use?
It uses a USB 2.0 bus connection.
What type of power meter is the USB-5680?
It is a true RMS power meter for measuring continuous wave signal power and path loss in automated test applications.
