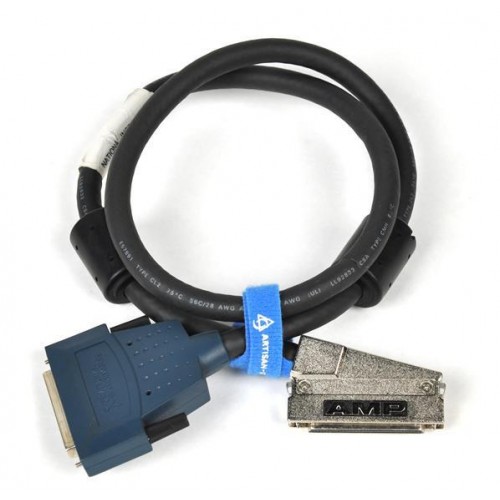

National Instruments SH68-68R1-EP Shielded right-angle multifunction DAQ cable

1 image: Click to enlarge

National Instruments · NI DAQ

SH68-68R1-EP

Name: SH68-68R1-EP
Brand: National Instruments

The NI SH68-68R1-EP is a shielded, twisted-pair DAQ cable with 68-pin female SCSI connectors and one right-angle end. NI also identifies this 1 m cable as SH68F-68R1F-EP, part number 187051-01.

ManufacturerNational Instruments

ModelSH68-68R1-EP

Part Number187051-01

Product TypeShielded right-angle multifunction DAQ cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH68-68R1-EP

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Length1 m

Connectors68-pin female SCSI at both ends

Cable constructionShielded twisted pair

Connector geometryOne right-angle end

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This cable connects supported NI DAQ devices to 68-pin accessories. Its right-angle connector helps route the connection where clearance is limited.

NI describes the SH68-68R1-EP as an enhanced-performance, noise-reducing MIO cable derived from the SH68-68-EP, with a right-angle backshell for enclosure routing.

Right-angle connector accommodates limited-clearance installations.
Shielded, twisted-pair construction.
Enhanced-performance design for noise reduction in supported multifunction I/O connections.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	187051-01
Cable length	1 m
Connector configuration	68-pin female SCSI to 68-pin right-angle female SCSI
Shielding	Shielded
Twisted pairing	Yes
Signal wire gauge	28 AWG
+5 V wire gauge	20 AWG
Cable outer diameter	13.7 mm
Bend radius listed by NI	165 mm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ 68-pin SCSI connections

Device-to-accessory interface

SH68-68R1-EP

Shielded right-angle interconnect

Documented device family

NI 61xx, formerly S Series

Confirm the exact DAQ model and accessory combination in NI's compatibility guide; connector pin count alone does not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH68F-68R1F-EP Cable — Official Product PageProduct Page · ni.com

Open →

68-Pin SCSI Cables — DAQ Multifunction I/O Cable GuideCable Guide · ni.com

Open →

61xx Models — DAQ Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is SH68F-68R1F-EP another name for SH68-68R1-EP?

Yes. NI explicitly identifies SH68-68R1-EP as an alternative name for SH68F-68R1F-EP, part number 187051-01.

What does R1 indicate?

R1 denotes a right-angle connector on one end of the cable.

Which NI devices are explicitly listed with this cable?

NI's 61xx compatibility guide lists SH68-68R1-EP for the 6110, 6111, 6115, and 6120. Consult the guide for the corresponding accessory combinations.
