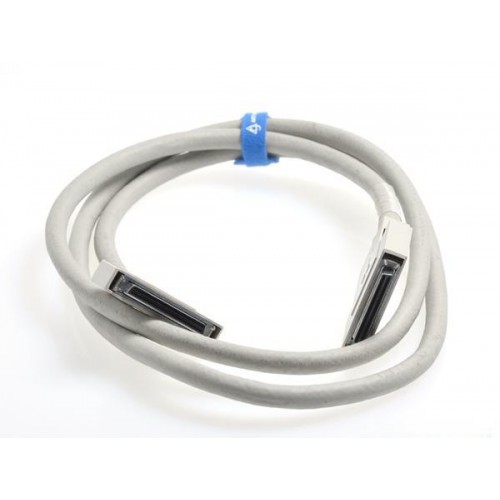

National Instruments SH68-68 Shielded multifunction I/O cable
1 image: Click to enlarge
National Instruments · NI DAQ

SH68-68

The National Instruments SH68-68 is a shielded multifunction DAQ cable with two 68-pin female SCSI connectors. It uses twisted pairs and basic shielding, without shielding between analog and digital signals.

ManufacturerNational Instruments
ModelSH68-68
Part Number182419-02 · 182419C-02
Product TypeShielded multifunction I/O cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH68-68

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Connectors68-pin female SCSI at both ends
Cable constructionShielded, twisted-pair
Documented 2 m identifiers182419-02 and 182419C-02
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SH68-68 provides a cable connection for supported NI multifunction I/O systems. Its SCSI D-Type interface must be matched to the specific DAQ device and terminal accessory.

NI documents multiple SH68-68 lengths. The manufacturer lists 182419-02 as the 2 m version, and its accessory declaration associates that identifier with 182419C-02.

  • Female SCSI connectors with 68 contacts on each end.
  • Twisted cable pairs with basic cable shielding.
  • No shields between analog and digital signals.
Verified specifications

Technical data

Verified product specifications.

Device-side connector68-pin female SCSI 0.050-inch D-Type
Accessory-side connector68-pin female SCSI 0.050-inch D-Type
Cable shieldingShielded
Twisted pairsYes
Signal wire size28 AWG
+5 V wire size28 AWG
Length for 182419-02 / 182419C-022 m
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ / SCSI D-Type

Supported device and accessory interface ecosystem

SH68-68

Shielded multifunction I/O interconnect

Compatibility

NI lists SH68-68 as a basic-shielding cable option for 6110, 6111, 6115 and 6120 devices; accessory selection remains device-specific.

Match the exact DAQ device and accessory using NI's compatibility guide; connector count alone does not establish compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH68-68 Product PageOfficial Product Page · ni.com
Open →
NI Accessories RoHS DeclarationManufacturer Declaration · download.ni.com
Open →
68-Pin SCSI Cables: NI DAQ Multifunction I/O Cable GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What connectors does the SH68-68 use?

Both ends have 68-pin female SCSI connectors.

Does the SH68-68 shield analog and digital signals separately?

NI describes basic shielding and twisted pairs, but states that there are no shields between analog and digital signals.

What length is part number 182419C-02?

NI's accessory declaration identifies 182419C-02 with 182419-02 as a 2 m SH6868 cable assembly.
