The National Instruments SCXI-1600 provides 16-bit data acquisition and control for SCXI systems, with a USB connection to a PC.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Installed in an SCXI chassis, the SCXI-1600 provides acquisition and control functions for SCXI analog input, analog output, digital I/O, and switching modules. It also provides external digital trigger, clock, and calibration connections.
NI documents configuration through NI-DAQmx and MAX. Before integrating this module into an existing system, confirm the host operating system and driver combination: NI explicitly excludes 64-bit Windows support and states that this USB connection method does not support daisy-chaining.
Verified product specifications.
| ADC resolution | 16 bit |
|---|---|
| Host interface | USB |
| Manufacturer part number | 776572-1600 |
| 64-bit Windows support | Not supported |
| Chassis daisy-chaining via SCXI-1600 | Not supported |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer

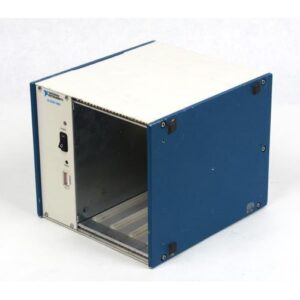

Chassis-based acquisition and signal-conditioning platform
USB acquisition and control module
NI-DAQmx and MAX
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides 16-bit data acquisition and control for SCXI modules and connects the system to a PC through USB.
No. NI states that the SCXI-1600 is not supported on 64-bit Windows. Check the applicable NI-DAQmx readme for the intended legacy host configuration.
No. NI states that the SCXI-1600 USB connection method does not support chassis daisy-chaining.
