NI (National Instruments) · SCXI

SCXI-1001

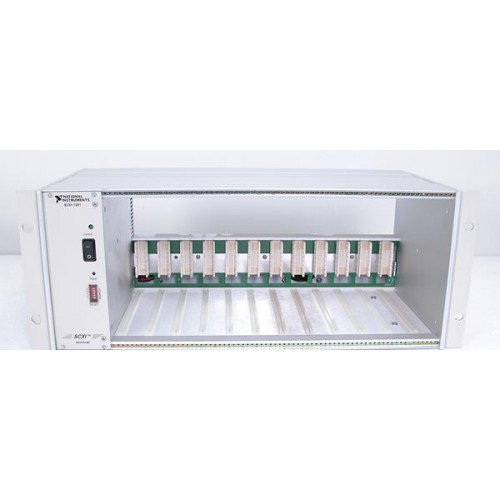

The NI SCXI-1001 is a 12-slot, AC-powered chassis for SCXI modules. It supplies module power and handles timing, trigger and signal routing within an SCXI system.

ManufacturerNI (National Instruments)

ModelSCXI-1001

Part Number776571-09 · 776571-10

Product Type12-Slot, AC Chassis for SCXI

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1001

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformSCXI

Module capacity12 slots

PowerAC-powered chassis

System roleModule power, timing, trigger and signal routing
