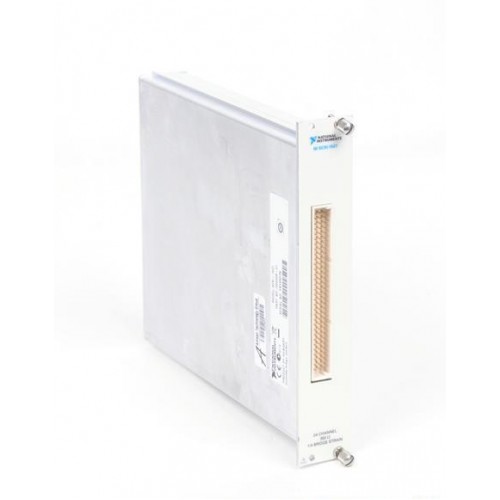

SCXI-1521

Name: SCXI-1521
Brand: National Instruments

The National Instruments SCXI-1521 is a 24-channel strain/bridge input module for 350 Ω quarter-bridge strain gauges. It provides software-selectable voltage excitation, lowpass filtering, and 350 Ω bridge-completion resistors.

ManufacturerNational Instruments

ModelSCXI-1521

Part Number777966-21

Product TypeQuarter-bridge strain/bridge input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1521

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels24

Gauge configuration350 Ω quarter bridge

ExcitationSoftware-selectable voltage

Required terminal blockSCXI-1317

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1521 provides high-channel-count quarter-bridge strain measurement for static and fatigue structural testing using 350 Ω gauges.

Sensor wiring connects through the SCXI-1317 terminal block. Installation requires an SCXI or PXI/SCXI combination chassis, with cabling and a cable adapter selected for the application.

24 quarter-bridge strain input channels.
350 Ω bridge-completion resistors for matching quarter-bridge gauges.
Software-selectable voltage excitation and lowpass filtering.
SCXI-1317 connection guidance covers both two-wire and three-wire quarter-bridge strain gauges.

Verified specifications

Technical data

Verified product specifications.

Input channel count	24 channels
Bridge configuration	Quarter bridge
Nominal strain-gauge resistance	350 Ω
Bridge-completion resistance	350 Ω
Excitation type	Software-selectable voltage
Filter type	Lowpass
Required front-mount terminal block	SCXI-1317

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Modular signal-conditioning platform

SCXI-1521

350 Ω quarter-bridge strain input module

Sensor connection

SCXI-1317 front-mount terminal block

Confirm the module suffix before selecting gauges: SCXI-1521 uses 350 Ω gauges; SCXI-1521B uses 120 Ω gauges.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1521 Official Product PageProduct Page · ni.com

Open →

SCXI-1317 Terminal Block Installation Guide and SpecificationsInstallation Guide · download.ni.com

Open →

NI-DAQmx 17.5 ReadmeDriver Support Reference · ni.com

Open →

SCXI-1317 Two-Wire and Three-Wire Quarter-Bridge Wiring GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the difference between SCXI-1521 and SCXI-1521B?

The SCXI-1521 is intended for 350 Ω quarter-bridge gauges and has 350 Ω completion resistors. The SCXI-1521B is the 120 Ω quarter-bridge version. They should not be treated as the same model.

Which terminal block does the SCXI-1521 require?

NI specifies the SCXI-1317 front-mount terminal block. Its installation guide includes two-wire and three-wire quarter-bridge wiring diagrams.

Does NI-DAQmx support the SCXI-1521?

The NI-DAQmx 17.5 readme explicitly lists NI SCXI-1521/B among supported modules. This is version-specific evidence, not a statement of compatibility with every driver release or operating system.
