SCXI-1520

Name: SCXI-1520
Brand: National Instruments

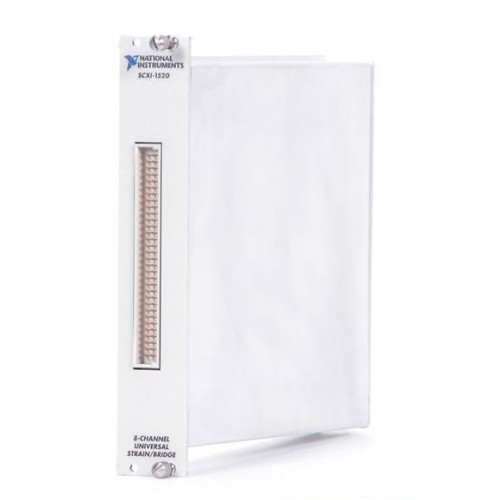

The NI SCXI-1520 conditions eight channels of strain-gauge and Wheatstone-bridge sensor signals.

ManufacturerNational Instruments

ModelSCXI-1520

Product TypeStrain/bridge signal conditioning module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1520

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

Bridge configurationsQuarter, half and full bridge

ExcitationProgrammable constant voltage

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Installed in an SCXI chassis, the module provides conditioned analog signals to a DAQ device for digitization.

Remote-sense excitation feedback.
Simultaneous sample-and-hold circuitry.
Offset-null compensation.

Verified specifications

Technical data

Verified product specifications.

Input channels	8 channels
Excitation range	0.0 to 10.0 V
Excitation increment	0.625 V
Maximum excitation operating current	29 mA
