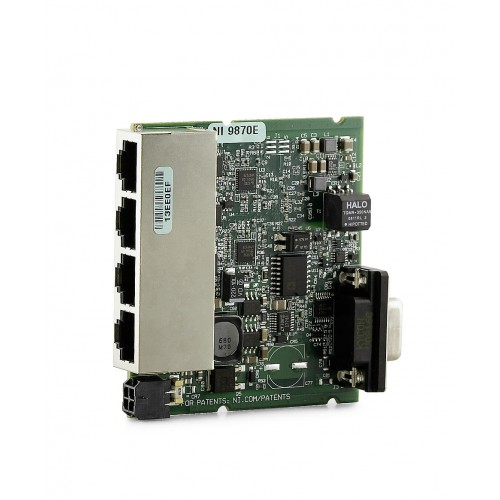

National Instruments sbRIO-9870 Board-only 4-port RS232 serial interface module
1 image: Click to enlarge
National Instruments · NI Single-Board RIO

sbRIO-9870

The NI sbRIO-9870 is the board-only NI 9870E four-port RS232 serial interface module listed for Single-Board RIO systems. It is an interface module, not a standalone embedded controller.

ManufacturerNational Instruments
ModelsbRIO-9870
Part Number780922-01 · 780922-02
Product TypeBoard-only 4-port RS232 serial interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9870

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Manufacturer designationNI 9870E
Serial ports4 independent RS232 DTE ports
ConstructionBoard-only module
Maximum baud rate921.6 kbps
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI lists sbRIO-9870 within its Single-Board RIO C Series interface modules under the NI 9870E designation. This board-only format should be distinguished from the enclosed NI-9870.

NI identifies 780922-01 as the board-only version, 780922-02 as the version with four 10P10C-DE9 cables, and 780922-10 as a ten-module package. These are manufacturer configurations; the catalog record does not identify its specific configuration.

  • Four RJ-50 serial receptacles.
  • ANSI/EIA/TIA-232-compatible ports.
  • External power supplies the RS232 transceivers.
Verified specifications

Technical data

Verified product specifications.

Serial port count4 ports
Serial standardRS232; DTE
Maximum baud rate921.6 kbps
Serial connectors4 RJ-50 receptacles
Required external supply+8 to +28 VDC
Operating temperature-40 to +85, internal to enclosure °C
Approximate weight55 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Embedded hardware platform

sbRIO-9870 / NI 9870E

Board-only RS232 interface module

Integration requirement

Install inside a suitable enclosure before use.

Confirm the controller's C Series connection arrangement and required software before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 9870E Operating Instructions and SpecificationsOperating Instructions And Specifications · docs-be.ni.com
Open →
NI Single-Board RIO HardwareOfficial Model And Configuration Reference · ni.com
Open →
NI 9870E connector pin assignments, dimensions, and power wiringTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
sbRIO-9871View product →
Related model
NI-9870View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the sbRIO-9870 an embedded controller?

No. NI identifies it as the NI 9870E board-only four-port RS232 serial module.

Does it require external power?

Yes. The transceivers require a +8 to +28 VDC external supply.

How does it differ from the sbRIO-9871?

The sbRIO-9870 provides RS232 interfaces; NI lists the sbRIO-9871 as a board-only four-port RS422/RS485 module.
