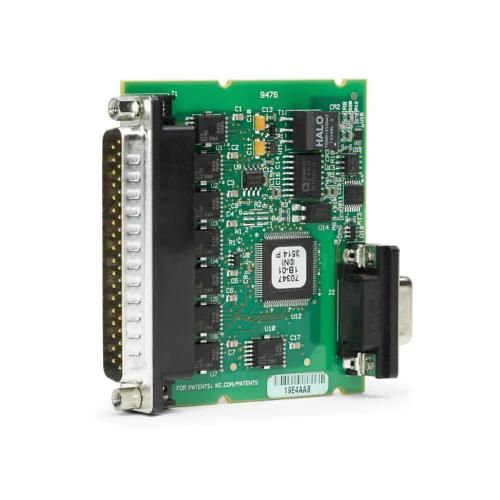

National Instruments sbRIO-9476 Board-only sourcing digital output module
1 image: Click to enlarge
National Instruments · NI Single-Board RIO

sbRIO-9476

The NI sbRIO-9476 is a board-only digital output module, designated NI 9476E, with 32 sourcing channels. It is an I/O module rather than a standalone embedded controller.

ManufacturerNational Instruments
ModelsbRIO-9476
Part Number783951-01
Product TypeBoard-only sourcing digital output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9476

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Outputs32 sourcing channels
FormatBoard-only
Nominal voltage24 VDC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI lists sbRIO-9476 under its Single-Board RIO I/O modules, with ordering part number 783951-01. Its NI 9476E designation identifies the board-only implementation.

  • Current-sourcing digital outputs.
  • Board-only construction for system integration.
  • Software-readable overcurrent status for each channel.
Verified specifications

Technical data

Verified product specifications.

Digital output channels32 channels
Output typeSourcing
External supply voltage6–36 VDC
Continuous output current per channel250 maximum with 6–30 VDC supply; 200 maximum with 30–36 VDC supply mA
Propagation delay500 maximum µs
Field connector37-pin D-SUB
Power-on output stateChannels off
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Platform

sbRIO-9476 / NI 9476E

Board-only output module

Install inside a suitable enclosure. Confirm host integration requirements before selecting the module.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 9476E Operating Instructions and SpecificationsManual · download.ni.com
Open →
NI Single-Board RIO HardwareManufacturer Platform And Ordering Reference · ni.com
Open →
sbRIO-9476 Product CertificationsCertification Reference · ni.com
Open →
NI 9476E connector assignments and wiring instructionsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
sbRIO-9401View product →
Related model
sbRIO-9482View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why does the manual use the name NI 9476E?

NI's ordering reference maps sbRIO-9476, part number 783951-01, to the NI 9476E board-only module.

Does it require an external power supply?

Yes. An external supply connected to Vsup and COM provides output-channel current.
